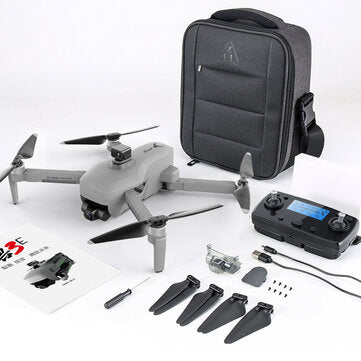

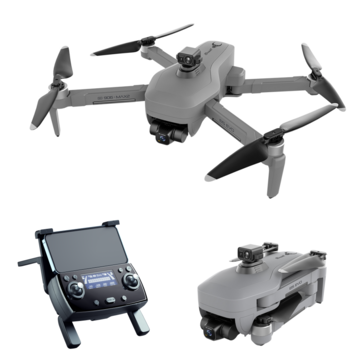

ZLL SG906 MAX2 BEAST 3E 3ES 5G WIFI 4KM FPV GPS with 4K EIS Camera 3-Axis Gimbal 30mins Flight Time Brushless RC Drone Quadcopter RTF

Name: ZLL SG906 MAX2 BEAST 3E 3ES 5G WIFI 4KM FPV GPS with 4K EIS Camera 3-Axis Gimbal 30mins Flight Time Brushless RC Drone Quadcopter RTF
Brand: Banggood Dropship
SKU: POA9628128
Price: 333.23 EUR
Availability: InStock

€333,23 EUR

Sale Sold out

Tax included.

Mode With HiSilicon Chip With Ambarella Chip

Version With Obstacle Avoider

Battery One Battery Two Batteries Three Batteries

Product variants

Quantity

ZLL SG906 MAX2 BEAST 3E 3ES 5G WIFI 4KM FPV GPS with 4K EIS Camera 3-Axis Gimbal 30mins Flight Time Brushless RC Drone Quadcopter RTF

Description:

Item	Specification
SG906 MAX2	Pressure sensor	Height setting

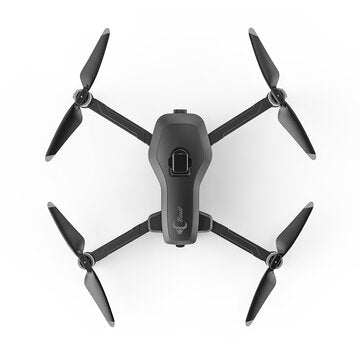

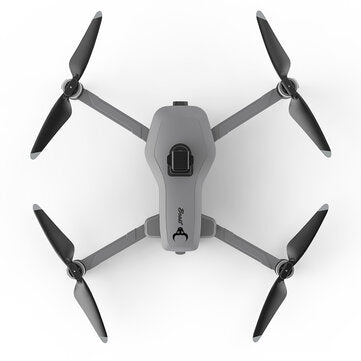

	Color	Grey(With Ambarella chip)
	Color	Black(With HiSilicon chip)
	Motor	1806 brushless motor
	Motor power	1700/KV
	Wheelbase	36cm
	Electric power adjustment	30A
	Image transmission receiving method	5G WIFI repeater strong signal
	Gimbal	Three-Axis EIS Gimbal
	Lens	Self-stabilizing electronic anti-shake Lens
	Obstacle avoidance detection range	360 °
	Obstacle avoidance detection range	≤20M
	Max remote control phone clip size	7inch
	Remote control battery	3.7V 1300mAh Lipo Battery
	Capacity of smart lithium battery	7.6V 5000mAh
	Control distance (Free interference and no occlusion)	4000m
	Cruising mileage(max)	8KM
	Wind resistance level(max)	level 6
	Ascendant speed(max)	4m/s
	Descent speed(max)	3m/s
	Take-off altitude(max)	4500m
	Flying speed(max)	45km/h
	Flight time	About 30mins
	Charging time	About 8 hours
	USB Charging	5V
	Product size	17.4x8.4x7cm
	Product size	28.3x25.3x7cm
	Product's Weight	651g(Included Obstacle Avoider)
	Battery Weight	205g
	Storage Card	256G(Max)
Camera Gimbal parameters	Image sensor	1/3.2 Inches
	Pixel	4K HD Camera
	APP Name	XIL MAX（IOS Android）
	Gimbal Angle(adjustment angle range)	110 ° automatic restores (Vertical)
		65° automatic restores (Sideways)
		45° automatic restores (Horizontal)
	Camera lens	Adjustable camera by transmitter, 110°
	Wifi image transmission distance	About 4000m
	GPS Follow me	15m
	IMAGE Follow me	1-5m
	Focal length	50X
	Hand gesture shooting/video reconization	1-5M
	Video resolution(Front camera)	2048*1080（TF）
	Video resolution(Front camera)	1920*1080P (APP)
	Photo resolution(Front camera)	3840*2160P(TF)
	Photo resolution(Front camera)	3840*2160P(APP)
	Video resolution(Down-looking camera)	1280*720p
	Photo resolution(Down-looking camera)	1280*720p
	Main camera video maximum stream	60Mbps
	Frame rate	30 fps
Obstacle Avoider	Measuring mileage	0.05-20 meters
	Measurement accuracy	2%
	Measuring speed	100HZ
	Resolution	1cm
	Operating Voltage	3.5-5.5VDC
	Power Consumption	60NA@5V
	Communication Interface	12C
	Communication Baud Rate	Up to 400k
	Communication Level	TTJ3.3VDC
	Communication Level	TTJ3.3VDC

Note:

1. The maximum SD card supported by the drone: 256GB SDHC/SDXC UHS-I Speed Grade 1 or UHS-I Speed Grade 3 micro SD

2. It is recommended to use a mainstream brand microSD card with a minimum writing speed of 30MB/s or more. Other low-speed cards may not only cause videos and pictures to be unstorable, but also cause video transmission freezes and APP flashbacks.

Features:

- Built-in repeater in the remote control

- 360° obstacle avoidance function

- GPS/GLONASS double mode

- 4K HD adjustable camera

- Mechanical three axis EIS gimbal

- Optical flow positioning mode

- Real-time image transmission

- Intelligent follow

- Surround flight

- Waypoint flight

- Trajectory pointing flight
