- Sku: S0228172
- Vendor: TP-Link

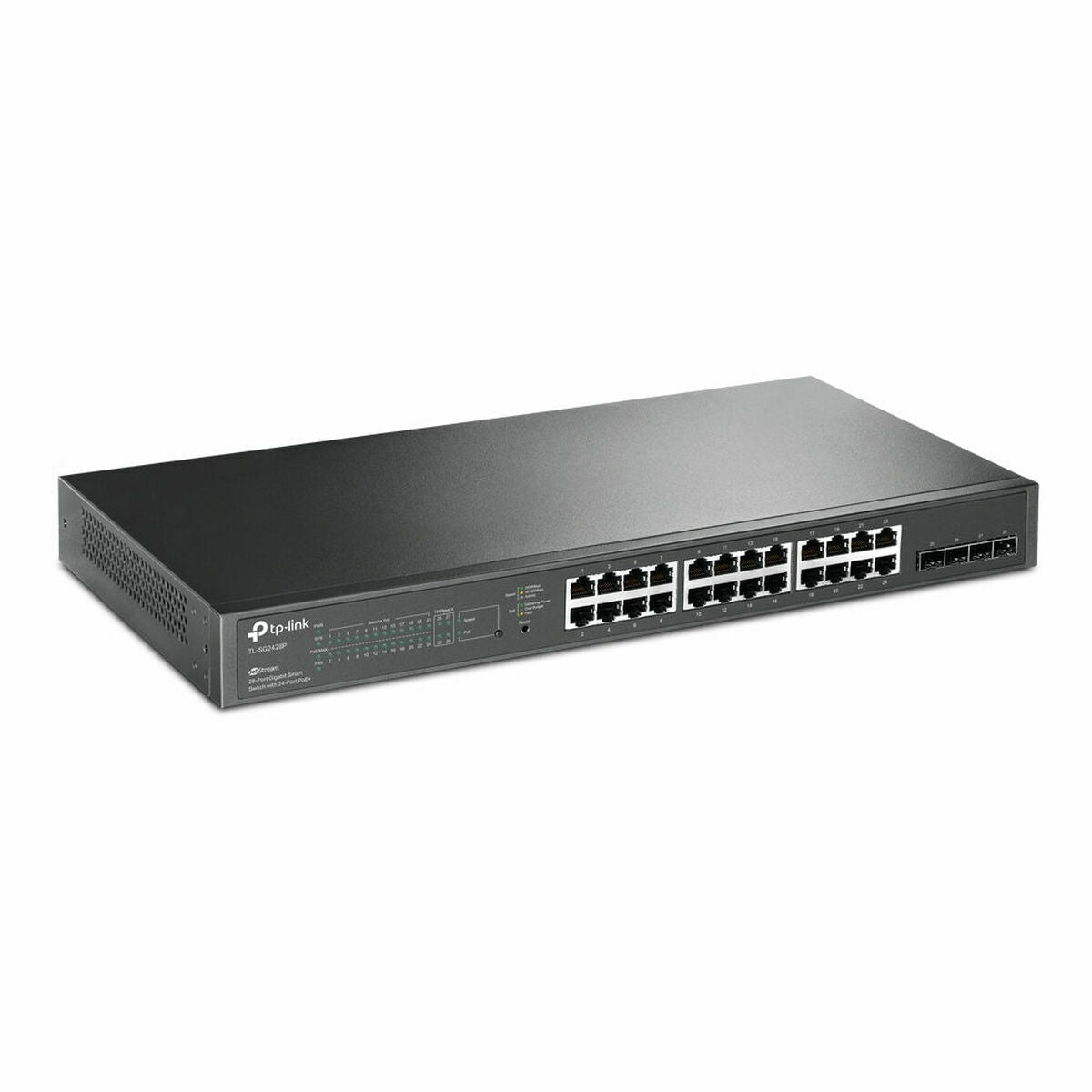

Switch TP-Link TL-SG2428P
Short content about your product.
Short content about your product.
Icons are optional
USE RICH TEXT EDITOR
And big icons to highlight the product sale point
- Type:
- Cupboard
- Rack
- Ports:
- 28
- 24
- Speed: 1 Gbps
- Ventilator:
- x 2
- 2
- Approx. dimensions: 44 x 22 x 4,4 cm
- Connections:
- RJ45 x 24
- SFP x 4
- Recommended use: Rack Cabinet
- Voltage: 230 V
- Product with plug: Yes
- Type of plug: Plug EU
- Colour: Black
- Weight: 1,5 Kg
- Holder: Multi-support
- Power supply: CA cable
- Connectivity: Ethernet LAN
- Certificate: CE, FCC, RoHS
- Working range for humidity: 10 % - 90 %
- Approx. temperature: -40º / 70º
- Safety: IGMP
- Energy consumption: 308.6 kWh
Realize More Possibilities with Omada JetStream 28-Port Gigabit Smart Switch with 24-Port PoE+ Software Defined Networking (SDN) with Cloud Access Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
- Quality of Service (QoS) support: Y
- Web-based management: Y
- ARP inspection: Y
- System event log: Y
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Fiber ports quantity: 4
- Fiber optic connector: SFP
- Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- 10G support: N
- Copper ethernet cabling technology: 10BASE-T,10BASE-TX
- Cable types supported: Cat3,Cat4,Cat5,Cat5e
- Port mirroring: Y
- Flow control support: Y
- Broadcast storm control: Y
- Rate limiting: Y
- Auto MDI/MDI-X: Y
- Spanning tree protocol: Y
- Auto-negotiation: Y
- VLAN support: Y
- Virtual LAN features: MAC address-based VLAN,Protocol-based VLAN,Voice VLAN
- Number of VLANs: 4000
- Fiber ethernet cabling technology: 1000BASE-X
- MAC address table: 8000 entries
- Switching capacity: 56 Gbit/s
- Forwarding rate: 41.7 Mpps
- Number of queues: 8
- Jumbo frames support: Y
- Jumbo frames: 9000
- DHCP features: DHCP relay,DHCP server,DHCP snooping,DHCPv6 client
- Access Control List (ACL): Y
- IGMP snooping: Y
- Security algorithms: HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSH-2,SSL/TLS
- Loop protection: Y
- BPDU filtering/protection: Y
- IP-MAC-Port binding: Y
- Authentication type: RADIUS
- Queue scheduling algorithms: SP, WRR+SP, Weighted Round Robin (WRR)
- Multicast support: Y
- Rack mounting: Y
- Product colour: Black
- Number of fans: 2 fan(s)
- Certification: CE, FCC, RoHS
- Firmware upgradeable: Y
- Power consumption (max): 308.6 W
- Power over Ethernet (PoE): Y
- Power over Ethernet (PoE) ports quantity: 24
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Heat dissipation: 1052.94 BTU/h
- Width: 440 mm
- Depth: 220 mm
- Height: 44 mm
- Cables included: AC
- User guide: Y
- Rack mount kit: Y
