- Sku: S0228171
- Vendor: TP-Link

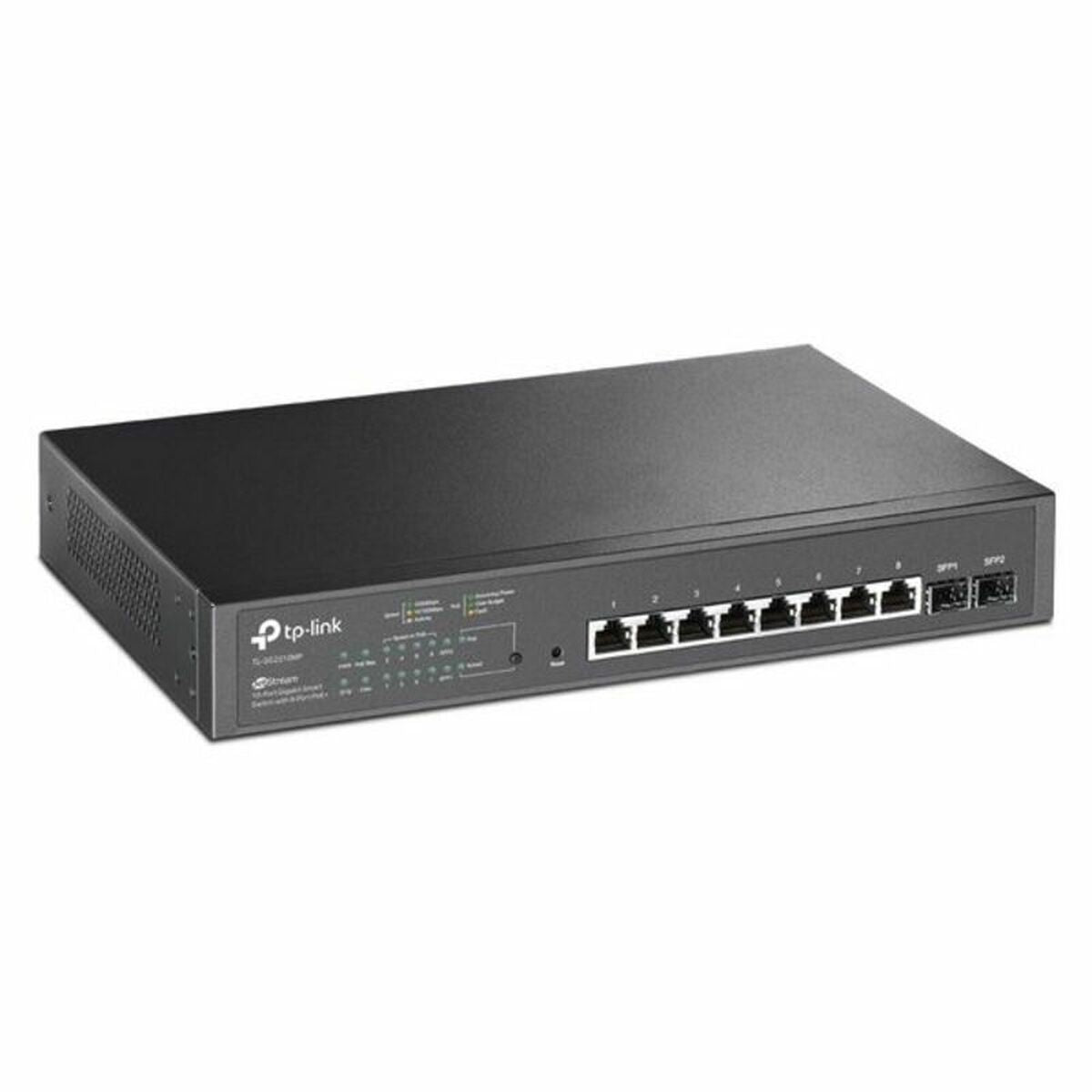

Switch TP-Link TL-SG2210MP Gigabit Ethernet
Short content about your product.
Short content about your product.
Icons are optional
USE RICH TEXT EDITOR
And big icons to highlight the product sale point
- Type:
- Tablecloth
- VLAN
- Colour: Black
- Connections:
- Gigabit Ethernet
- RJ-45 x 8
- Speed: 1 Gbps
- Power supply: 150 W
- Approx. dimensions: 29,4 x 18 x 4,4 cm
- Recommended use: Rack Cabinet
- Certificate:
- CE & RoHS, FCC
- CE, FCC, RoHS
- Ventilator:
- x 1
- 1
- Product with plug: Yes
- Type of plug: Plug UE
- Holder: Multi-support
- Ports: 8
- Power: 150 W
- Connectivity: Ethernet LAN
- Weight: 1,2 kg
- Working range for humidity: 10 % - 90 %
- Approx. temperature: -40º / 70º
Realize More Possibilities with Omada JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+ Software Defined Networking (SDN) with Cloud Access Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
- Quality of Service (QoS) support: Y
- Web-based management: Y
- Cloud-managed: Y
- System event log: Y
- MIB support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1213, RFC2233, RFC1643, RFC1493
- Basic switching RJ-45 Ethernet ports quantity: 8
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Fiber ports quantity: 2
- Fiber optic connector: SFP
- Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
- 10G support: N
- Copper ethernet cabling technology: 10BASE-T,100BASE-TX
- Port mirroring: Y
- Flow control support: Y
- Link aggregation: Y
- Broadcast storm control: Y
- Rate limiting: Y
- Auto MDI/MDI-X: Y
- Auto-negotiation: Y
- VLAN support: Y
- Virtual LAN features: MAC address-based VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN
- Number of VLANs: 4000
- Fiber ethernet cabling technology: 100BASE-FX,1000BASE-X
- MAC address table: 8000 entries
- Switching capacity: 20 Gbit/s
- Forwarding rate: 14.9 Mpps
- Number of queues: 8
- Jumbo frames support: Y
- Jumbo frames: 9000
- Packet buffer memory: 0.5 MB
- DHCP features: DHCP snooping,DHCPv6 snooping
- Access Control List (ACL): Y
- Security algorithms: EAP-LEAP,EAP-MD5,EAP-TLS,EAP-TTLS,HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSH-2,SSL/TLS
- Queue scheduling algorithms: SP, Weighted Round Robin (WRR)
- Multicast support: Y
- Product colour: Black
- Number of fans: 1 fan(s)
- Certification: CE, FCC, RoHS
- Power over Ethernet (PoE): Y
- Power over Ethernet (PoE) ports quantity: 8
- Total Power over Ethernet (PoE) budget: 150 W
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
- Width: 294 mm
- Depth: 180 mm
- Height: 44 mm
