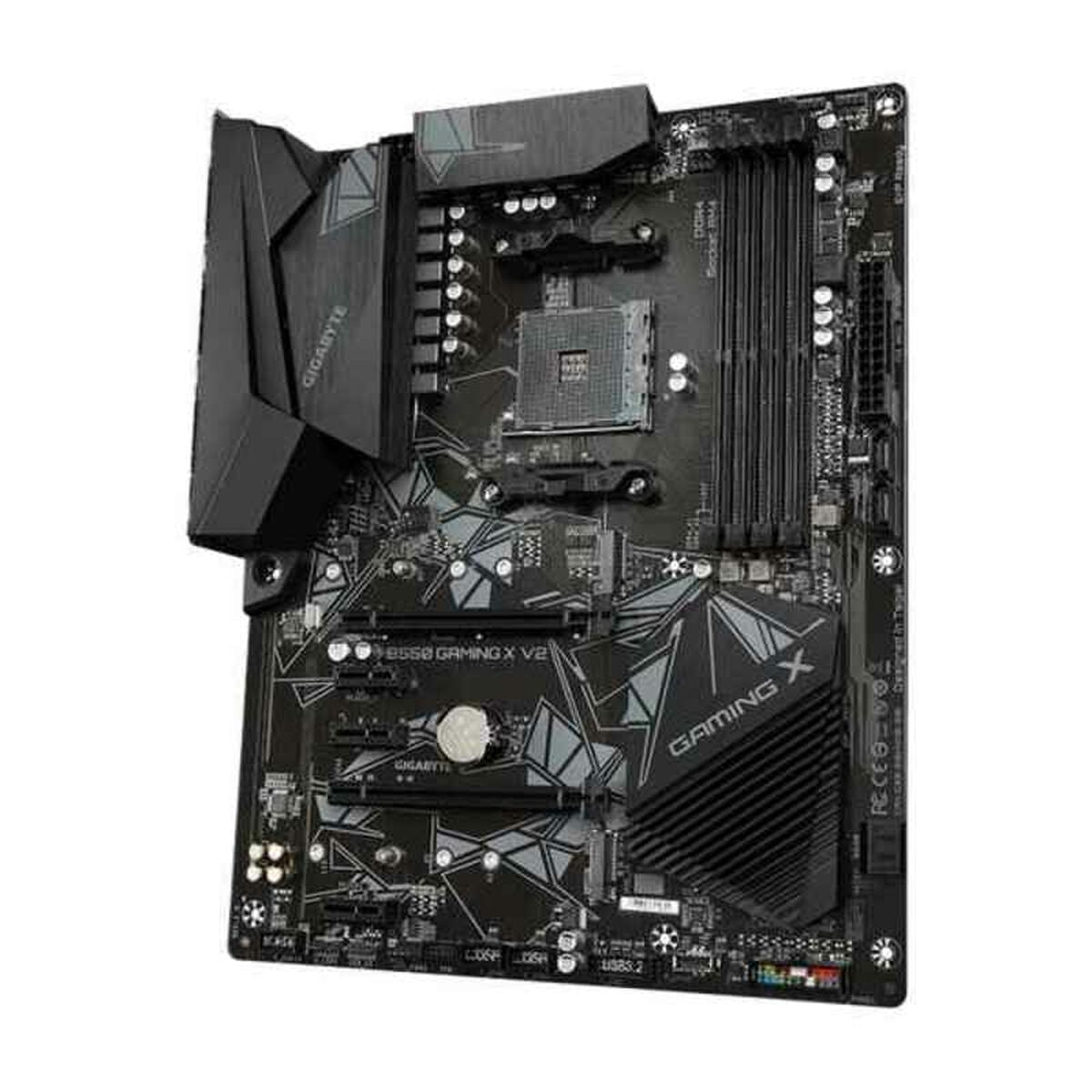

Motherboard Gigabyte B550 GAMING X V2 AMD B550 AMD AMD AM4

If you're passionate about IT and electronics, like being up to date on technology and don't miss even the slightest details, buy Motherboard Gigabyte B550 GAMING X V2 AMD B550 AMD AMD AM4 at an unbeatable price.

• Connections:
  • ATX 24-pin x 1
  • ATX 12V 8-pin x 1
  • Jack 3.5 mm x 5
  • S/PDIF x 1
  • PCI Express (x1) x 1
  • Sata III
  • PS/2 x 1
  • HDMI
  • USB 2.0
  • USB 3.2
  • HDMI x 1
  • 2 x USB 2.0
  • Ethernet LAN
  • SATA x 4
  • M.2 x 2
  • DIMM
  • 3 x USB 3.2 Gen 1 (3.1 Gen 1)
  • USB 2.0 x 2
• Sound:
  • Realtek ALC1200
  • Realtek ALC887
• Width: 30,5 cm
• RAM Memory: 1 GB RAM
• Lighting: RGB LED
• Chipset:
  • AMD AM4
  • AMD B550
  • AMD
• Operating System:
  • Windows 10 64 bits
  • Windows 10
• Socket:
  • Socket AM4
  • AMD AM4
• Type:
  • Motherboard
  • ATX
  • DDR4-SDRAM
  • UEFI
• Connectivity: Gigabit Ethernet
• Processor: AMD
• Platform: Windows
• Form factor: ATX
• Memory: 256 MB
• Number of memory slots: 4
• Hard Drive: 512 GB SSD
• Speakers: 7.1
• Compatible:
  • DDR4-SDRAM
  • HDD/SSD
  • PC
• Not included: WiFi
• Battery operated:
  • Iincluded
  • 1 Litio Ion
• Frequency: 2133 MHz
• Processor Family: AMD

AMD StoreMI Technology GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system. 10*+3 Phases Digital Twin Power Design B550 motherboard use a 10+3 phases Digital Twin Power Design with Low RDS(on) MOSFETs to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability. USB Type-C™ Front Panel Connector Equipped with next generation connectivity, AORUS Gaming Motherboards already support the chassis of the future. The onboard USB Type-C™ header for USB 3.2 Gen1 makes access convenient when connecting a USB 3.2 Gen1 device or charging your mobile device. Dual NVMe PCIe 4.0*/3.0 M.2 Connectors With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x4 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes. High Speed Gigabit LAN with Automatic Bandwidth Allocation Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth – twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers. Smart Fan 5 With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking. Hybrid Fan Pin Headers Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC. • All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode. New Smart Fan 5 Software Choose from different modes, Quiet to Full Speed, to match your system usage preferences. For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds. RGB FUSION 2.0 With B550 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations. With B550 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come. With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience. GIGABYTE RGB Fusion APP Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC. High-End Audio Capacitors GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. Audio Noise Guard GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. Q-Flash Plus Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go! Solid Pin Power Connectors B550 motherboards feature solid plated ATX 12V 8pin power connectors for offering stable power supply while CPU overloading. START SULFURIZATION PROTECTION Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. Refreshed BIOS The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. APP CENTER GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version. EasyTune™ GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most. @BIOS The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image. System Information Viewer GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer. XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

• Processor manufacturer: AMD
• Processor socket: Socket AM4
• Compatible processor series: AMD Ryzen 3 3rd Gen, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen 7, 3rd Generation AMD Ryzen 9
• Supported memory types: DDR4-SDRAM
• Number of memory slots: 4
• Maximum internal memory: 128 GB
• Memory slots type: DIMM
• Memory channels: Dual-channel
• Supported memory clock speeds: 2133,2400,2667,2933,3200 MHz
• Supported storage drive interfaces: M.2,SATA III
• Supported storage drive types: HDD & SSD
• RAID levels: 0,1,10
• Parallel processing technology support: Not supported
• Maximum graphics adapter memory: 16 MB
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of SATA III connectors: 4
• Front panel audio connector: Y
• Front panel connector: Y
• ATX Power connector (24-pin): Y
• CPU fan connector: Y
• TPM connector: Y
• 12V power connector: Y
• RGB LED pin header: Y
• USB 2.0 ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• DVI-D ports quantity: 1
• PS/2 ports quantity: 1
• Wi-Fi: N
• Ethernet LAN: Y
• Ethernet interface type: 100 Gigabit Ethernet, Gigabit Ethernet
• Component for: PC
• Motherboard form factor: ATX
• Motherboard chipset family: AMD
• Motherboard chipset: AMD B550
• Audio output channels: 7.1 channels
• Audio chip: Realtek ALC887
• Windows operating systems supported: Windows 10 x64
• PCI Express x1 (Gen 3.x) slots: 3
• PCI Express x16 (Gen 4.x) slots: 1
• Number of M.2 (M) slots: 2
• BIOS type: UEFI AMI
• BIOS memory size: 256 Mbit
• ACPI version: 5.0
• Clear CMOS jumper: Y
• Desktop Management Interface (DMI) version: 2.7
• System Management BIOS (SMBIOS) version: 2.7
• Width: 305 mm
• Depth: 244 mm
