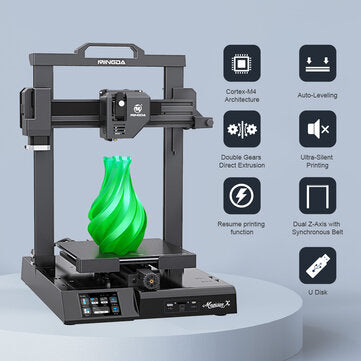

MINGDA Magician X 3D Printer 230x230x260mm Printing Size Support One Touch Smart Auto Leveling with TMC Silent Motherboard

Warm Tips: Delays in product delivery.

Introduction:

MINGDA Magician X--Equipped with a new 32-bit motherboard and a high-performance Cortex-M4 architecture main control chip, MINGDA features faster computing speed and smoother system. The integration silent driver makes the motherboard have both silent printing and precise voltage output control, which ensures more accurate and silent printing.

Important Fuction:

• Innovator of Auto-Leveling
  Say goodbye to manual leveling, the intelligent leveling system can automatically adjust the uneven hotbed.High-sensitivity sensor,one- touch leveling and 16-point precise leveling.


• Ready to Print
  Integrated structure and modular design, one step assemble, ready to print


• Glass Heat Bed
  The 4th generation of glass heat bed cold glue installation,easy to take the model and scratch proof.


• Cooling Fans
  The printing head adopts fan, cools down models rapidly. The printing speed is faster which can reach 100mm/s.


• Double Gears Direct Extrusion
  Conveying material uniform without winding


• Automatic Filament Detection
  Broken material can be automatically detected


• Multi Connection
  Support SD card, USB and USB-C, supports online printing


• Patented Dual Z-Axis with Synchronous Belt
  Ensure the accuracy of the print head in the X-axis direction


• Build-in Tool Box: Convenient after using the tool


• 3.5" large touch screen
  The screen adopts a new UI interface, manipulate photos, and switch in multiple languages. New interface; large screen; simple operation.


• Stepping Drive - Ultra Quiet TMC
  Use TMC Stepper Motor Drivers,Super Quiet and Noise Reduction,running more stable,≤50dB silent printing


• Newly upgraded chip of Brand core
  High-speed computing; high-performance,
  32-bit frequency: 168M;
  Cortex-M4 CPU with FPU and
  DSP instruction，memory protection unit

• File Download

  • Firmware:
    / X_GD_1.6.6.4_V22
    X_ST_1.6.6.4_V22


  • Manual please click on it to download.

Specifications

● Print Technology: FDM ( Fused Deposition Modeling)
● Build Volume: 230(L)*230(W)*260(H)mm
● Print Resolution: ± 0.1mm
● Positioning Accuracy: X/Y 0.0125mm, Z 0.002mm
● Nozzle Number: Single
● Nozzle Diameter: 0.4mm
● Print Speed: <200mm/s (recommended 60 - 80mm/s)
● Support Filaments: PLA, TPU, ABS
● Slicing Software: Cura
● Input Formats: .STL, .OBJ, .AMF
● Output Formats: GCODE
● Connection Mode: SD Card, U Disk, USB-C
● Input voltage: 100/240 V AC, 50/60Hz
● Output voltage: 24V (350W)
● Ambient operating Temperature: 5℃ - 40℃
● Operational Nozzle Temperature: max ≤260℃
● Operational Hot Bed Temperature: max ≤110℃
● Machine Size: 460mm*415mm*546mm
● Machine Weight: ~7.4kg
