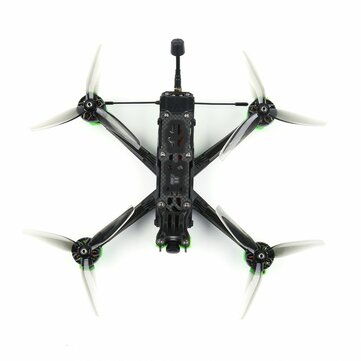

iFlight Nazgul5 Evoque F5 F5X Squashed X GPS Version HD/Analog 4S / 6S 5 Inch FPV Racing Drone w/ Vista Nebula Pro Digital System
Short content about your product.
Short content about your product.
Icons are optional
USE RICH TEXT EDITOR
And big icons to highlight the product sale point
PRODUCT DESCRIPTION
The Secret Of Ultimate Performance Is Passion
That was the slogan for our newest approach to creating this piece of art! Fully protected electronics, fully illuminated, coupled with all the latest and greatest electronics we can offer. Months of engineering went into this BNF and all the lessons learned before, making sure that beginners, as well as experienced pilots, would fully enjoy using the new Nazgul Evoque from the first second they use it.
Lightweight Side Panels - Keep Your Rig Clean
Ever felt like a lawnmower cutting through the grass in your early days, props cutting and throwing wet grass all over and inside your flight stack? Well... These days are over! The new side panels will not only protect from wetness but also protect the internals from any strikes hitting off little components from your flight controller.
Secured Integrated XT60 Battery Plug - As Safe, It Can Be
Dangling battery plugs will ALWAYS find a way in your props, there's always that one time you forgot to secure it properly and almost cut off the cable while flying. There was only one way to get rid of that and we think we might have found a solution. The integrated XT60 connector on the back lets you securely plug in your battery leading all cables away from your props.
High-Performance Electronics - F7 55A Power Stack (HD version)
Our SucceX Mini F7 TwinG flight control with Gyro Fusion technology, modern USB type-C plug, 32MB flash for every tuning session, and 5 UARTs for whatever equipment you might possibly wanna use. Power from the gods with our new SucceX Mini 55A ESC packed with better heat-dissipating Mosfets and a whole bunch of SMD capacitors to filter out possible motor noise, besides the pre-soldered directly installed Capacitor right next to your battery leads.
XING2 Performance Motors - The Best Motors Just Got Better
7075 aluminum bell, 5mm titanium alloy shaft, NSK durable bearings, Center slotted magnets for better response, and lower air gaps for a higher magnetic flux with increased performance and efficiency. Not to mention the typical XING damping ring between the bell and bearing to increase durability and smoothen out your flights.
Illumination - Let 1t Be Green
360-degree illumination for day and night. Maybe the prettiest BNF out there but also a practical one. The bottom light indicates battery voltage, a quick check gives you a hint of the voltage still remaining; Never lift off with an empty battery again. Installed LED wires in the side panels and the bottom of the arms are also illuminated and gives you some style at the next night's race.
Specifications:
Brand: iFlight
Item Name: Nazgul5 Evoque F5 HD/Analog with GPS FPV Racing Drone (Squashed X )
Nazgul5 Evoque F5X HD 4S / 6S FPV Racing Drone |
Total Dimensions: 136*190mm (body dimension) Bottom to top distance: 28mm Arm Thickness: 6mm Bottom plate thickness: 3mm Top plate thickness: 3mm Upper(middle) plate thickness: 3mm XING2 2207 motors (4S/6S) FC // SucceX-D Mini F7
ESC // SucceX Mini 55A BLHeli_S
Camera&VTX: Caddx Polar Vista

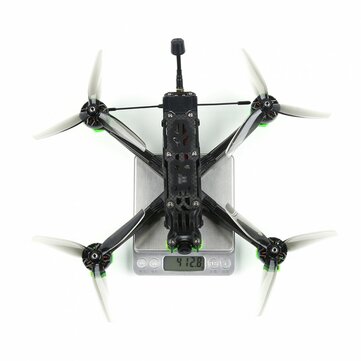

Nazgul F5 propellers Weight: 412g (without battery and GoPr0 mount) |
Nazgul5 Evoque F5X Analog 4S / 6S FPV Racing Drone |
Total Dimensions: 166*139mm (body dimension)
Bottom to top distance: 28mm
Arm Thickness: 6mm
Bottom plate thickness: 2.5mm
Top plate thickness: 2mm
Upper(middle) plate thickness: 3mm
FC // SucceX- E Mini F7
ESC // SucceX-E Mini 45A BLHeli32
XING-E Pro 2207 4S 2750KV / 6S 1800KV
Camera: RaceCam R1 Mini 1200TVL 2.1mm lens 19*19 FPV Camera
VTX: 5.8GHz SucceX Mini Micro 600mW VTX
Nazgul F5 propellers
Weight: 392.6g (without battery and GoPro mount)
|
FC // SucceX-D Mini F7(HD) |
MCU: 216MHz STM32F722 Gyro:2x ICM20689 Blackbox:32MB Betaflight OSD: YES BEC: 5V 2.5A / 9V 2.5A Current sensor scale: 100 Inverter for SBUS input (UART2-RX) Smart audio & Tramp VTX protocol supported Beeper pad: Yes RSSI input pad: No UARTs:5 Motor outputs: 4 8 pin 4in1 ESC port (GND, VBAT, M1, M2, M3, M4, CUR, R5) 6 pin DJI Air Unit port (R1, GND, R2, T2, GND, 9V) BLHeli32 Telemetry:Yes Input voltage:recommended 2-6S, MAX 6S Firmware target: IFLIGHT_F722_TWING Mounting pattern: 20*20mm φ3 Dimensions:29*29mm USB Type-C |
FC // SucceX-E Mini F7(Analog) |
MCU: STM32F22RET6 216 MHz
Gyro: MPU6000
OSD: IFLIGHT OSD (AT7456E)
BEC: 5V 2.5A
BlackBox: 16MB
Uart: 4*UART(UART1、UART2、UART4、UART5)
UART1 for VTX HD/Analog Telemetry
UART2 for Receiver
UART4 for GPS
UART5 for ESC Telemetry
4×Dshot/PWM outputs
Smartaudio & IRC Tramp VTX protocol supported
WS2812 led Strip: Yes
Bepper: Yes
Firmware: IFLIGHT_SUCCEX_E_F7 4.2.0
Outer Size: 27*27mm / 20*20mm φ3 mounting
Weight: 4.9g
|
ESC // SucceX Mini 55A (HD) |
Dimension: 31*29.5mm Mounting Holes: 20*20mm/Φ4mm Weight: 10.8g Supports 2-6S Lipo input MCU: G071 Constant: 55 Amps Burst: 60 Amps Current sensor: Yes BEC: No Current rate: 100 Supports DShot DShot150/300/600/MultiShot/ OneShot etc. Firmware: BLHeli 32 Target: iFlight-G071-4IN1 |
ESC // SucceX-E Mini 45A (Analog) |
Input: 2-6S LiPoly
Constant: 45 Amps (per channel)
Burst: 55 Amps (per channel)
BEC: No
BlHeli32 telemetry: Yes
Dimensions: 31x29.5mm
Mounting Holes: 20*20mm φ3mm with Grommets φ2mm
Weight: 6.7g (without motor wires)
Target: iFlight-G071-4IN1
|
GPS
Model: M8Q-5883 GPS
GPS module: GPSSAM-M8Q
Frequencies: 72 channel
Compass module: QMC5883L
Baud Rate: 4800bps-115200bps (Default - 9600bps)
Sensitivity: Tracking: -162dBm, Capture: -160dBm,Cold Start:-148dBm
Cold start: <29s
Hot start: <2s
Accuracy: Horizontal <2.5m average), SBAS < 2.0m average, Timepulse: RMS 30 ns
Maximum height: 50.000m
Maximum speed: 500 m/s
Speed accuracy: 0.05 m/s
Maximum acceleration: ≦ 4G
Refresh Rate: 10 Hz
GPS patch antenna size: 15 x 15 mm
Total dimensions: 20 x 20 x 10.5 mm
Weight: 8g
Input Voltage: 3.3V-5V,current 25mA
GPS pin definition: RX/TX UART
Compass pin definition: SDA/SLA
Package included:
1 x Nazgul5 Evoque F5 HD/Analog FPV Racing Drone (Squashed X )
1x iFlight M8Q-5883 GPS
4 x Nazgul F5 Prop
2 sets of Battery Pads
4 x Battery straps
1 x Screws bag
