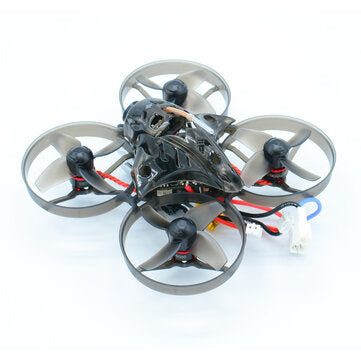

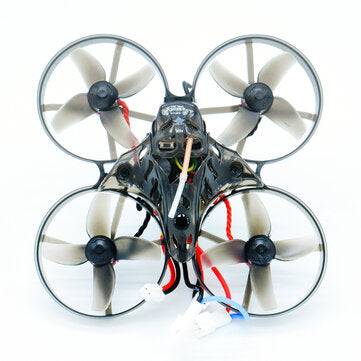

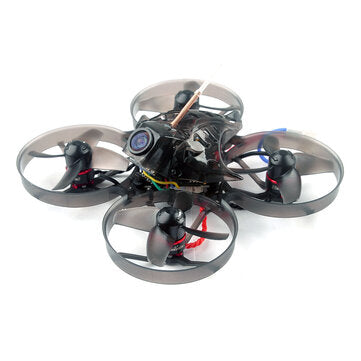

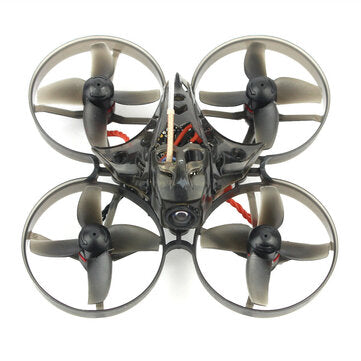

Happymodel Mobula7 V2 75mm Crazybee F4 Pro V2 2S Whoop FPV Racing Drone w/ Upgrade BB2 ESC 700TVL BNF

Notice: Because the MPU6000 is out of production, the flight controller and related Drone will gradually be replaced by ICM20689 or BMI270.

Notice:  It was upgraded with F4 V2.0 Flight Controller.
              Will update product infomation asap.
              11.29
Click here to buy Original Mobula7 Parts.
Specification:
Brand Name: Happymodel
Model: Mobula7 V2
Item Name: 75mm Wheelbase 2S Brushless Whoop FPV Racing Drone
Wheelbase: 75mm
Version: Basic Version / Standard Version ( Optional)
- The diffirence of them are the package charger.
   Basic Version: USB Charger
   Standard Version: 6-way Charger

Weight: 25.9g (without battery) ;

Flying weight: 40g (with Original 250mah lipo battery x2 )

Max Take Off Weight: about 44g

Crazybee F3 Pro Flight Controller	Item Name: Crazybee F3 Pro FC MCU: STM32F303CCT6 (72MHZ, 256K FLASH) Sensor: MPU6000 or ICM20689 or BMI270 (SPI connection) Board size: 28.5 * 28.5MM Power supply: 1-2S battery input (DC 3.5-8.7V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Receiver ( Diffirent version having diffirent receiver) Built-in Betaflight OSD(SPI Control) Built-in Current meter Max 28A Current meter scale set to 1175 Built-in 5V 1A BEC with LC filter Built-in voltage detection BLHELI_S pass-through Ready Heading LED Ready Firmware (Frsky version) CRAZYBEEF3 PRO FR Firmware target: CrazybeeF3FR (Flysky version) CRAZYBEEF3 PRO FS Firmware target: CrazybeeF3FS (DSM2/DSMX version) CRAZYBEEF3 PRO Firmware target: CrazybeeF3DX (Frsky EU-LBT version) CRAZYBEEF3 PRO FS Firmware target: CrazybeeF3FS
Onboard 5A 4 In 1 ESC	Power supply: 1-2S LiPo/LiPo HV (3.5v/8.7v) MCU upgraded to EFM8BB21 Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: S_H_50_REV16_7 Default protocol: DSHOT600
Onboard Frsky NON-EU receiver Version	SPI BUS receiver Frsky D8/D16 switchable Compatible Non EU transmitter both D8 and D16 mode Channels: 8ch or 16ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300M
Onboard Frsky EU-LBT Version (External XM receiver)	Operating Voltage Range: 3.7~10V Operating Current: 30mA @5V Operating Range: Full range With RSSI output on board: Analog 0~3.3V Firmware Upgradeable, Default firmware EU-LBT with RSSI
Onboard Flysky receiver Version	SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Onboard DSM2 / DSMX receiver version	Serial bus receiver Protocol: DSM2/DSMX compatible Channels:6-9 (Depend on your radio) No ground interference ( Transmitter and receiver 1 m from the ground): 300m
SE0802 16000KV Motor	KV: 16000KV; Configu-ration: 9N12P Support 1-2S Lipo; Stator Diamter: 8mm; Stator Length: 2mm Shaft Diameter: Φ1.0; Motor Dimension (Dia.*Len) : Φ10.5*14.5mm Weight: 1.8g
Propeller	40mm 4-blade Propeller ( 4 CW 4 CCW)
5.8G VTX AIO Camera	Output power: 25mW;Input voltage: 3.3- 5.5V;Current consumption: 300mA(type) Camera resolution: 700TVL; Field of view: 120°; Video Format: NTSC Antenna: RG178 antenna Frequency: 5.8GHz 5bands 40 channels With Raceband Smartaudio ready(Frsky EU-LBT and DSMX version not compatible) Size: 13.9"12.0mm ( L*W ); Weight: 3g
3.8v 250mAh Lipo Battery  Notes: Need 2pcs batteries for Series circuit	Connector: PH2.0 Continuous Discharge Rate: 30C; Instantaneous discharge rate: 60C Size: 55mmx12mmx7mm; Weight: 6.5g

Features:
- 2S whoop more powerful and more flight time
- Betaflight support , multi flight mode: ACRO/AIR/ANGLE
- Smartaudio ready , change VTX bands, channels via OSD
  DSM2/DSMX and Frsky EU-LBT version are Serial-based receiver, so Smartaudio is not compatible.
- Adjust the settings and the PID of the flight controller via OSD
- Frsky Non-EU version support NON-EU Frsky transmitter D8/D16 compatible
- Flysky version support both AFHDS and AFHDS-2A protocol transmitter
- DSM2/DSMX version support DSM2 and DSMX compatible Spektrum transmitter
- Frsky EU-LBT version support Frsky EU-LBT firmware transmitter
- Full telemetry function ready
- Head lights ready
- Camera angle adjustable
- Real Bind and Fly version
- Buzzer Ready

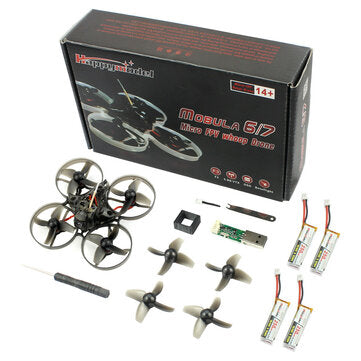

Package Included:
Basic Version
1x Mobula7 V2 75mm FPV Drone
4x 40mm 3-Blade Propellers ( 4 CW & 4 CCW)
4x 3.8v 250mah 30C/60C Lipo battery
1x USB Lipo/LIHV Charger
1x Fixing Mount for Lipo Battery
1x Propeller Disassemble Tool
1x Screwdriver

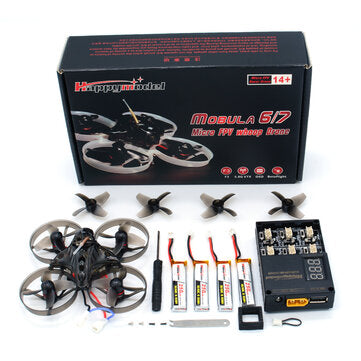

Standard Version
1x Mobula7 V2 75mm FPV Drone
4x 40mm 3-Blade Propellers ( 4 CW & 4 CCW)
4x 3.8v 250mah 30C/60C Lipo battery
1x 1S06 6 Way Lipo/LIHV charger
1x Propeller Disassemble Tool
1x Fixing Mount for Lipo Battery
1x Screwdriver
