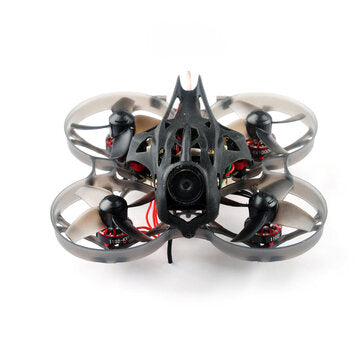

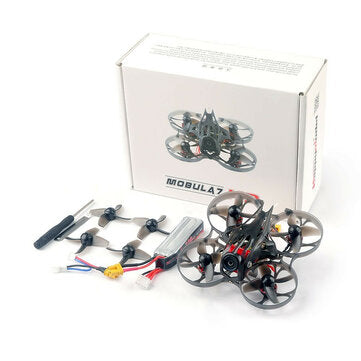

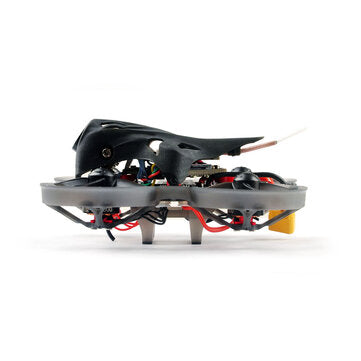

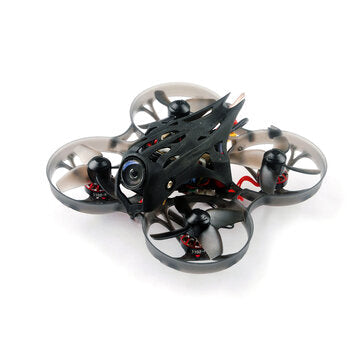

Happymodel Mobula7 HD 2-3S 75mm Crazybee F4 Pro V3.0 Flight Controller AIO 10A ESC CineWhoop FPV Racing Drone PNP BNF w/ 1102 9000KV Motor Runcam Splite3 Lite Camera
Short content about your product.
Short content about your product.
Icons are optional
USE RICH TEXT EDITOR
And big icons to highlight the product sale point
Notice: Because the MPU6000 is out of production, the flight controller and related Drone will gradually be replaced by ICM20689 or BMI270.
Upgrade Version:
1. Motors are upgraded to 9000KV Version.
2. Removed the Microphone and it was packed separately in the pacakge.
3. Heighten the frame
07.29.2020 Beijing Time
4. The Mobula7 HD Comes with new V30 FC & Runcam Split3-lite FPV Camera after Jan. 21th, 2021.
Brand Name: Happymodel
Model: Mobula7 HD
Item Name: 75mm Wheelbase 2-3S Brushless Whoop FPV Racing Drone
Wheelbase: 75mm
Receiver ( Optional): Compatible Frsky NON-EU Receiver
Compatible Flysky Receiver
Compatible DSM2/DSMX Receiver
Without Receiver

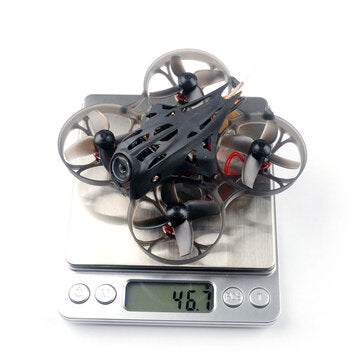

72g ( with battery )
| Crazybee F4 PRO V3.0 Flight Controller |
Built-in Betaflight OSD(SPI Control) Firmware (Frsky version) CRAZYBEE F4FR PRO V3.0 Firmware target: CrazybeeF4FR
(Flysky version) CRAZYBEE F4FS PRO V3.0 Firmware target: CrazybeeF4FS (No RX version) CRAZYBEE F4 PRO V3.0 Firmware target: CrazybeeF4DX |
| Onboard 10A BL_S 4In1 ESC |
MCU upgraded to EFM8BB21
Power supply: 2-4S LiPo/LiPo HV (7v/17v) Current: 10A continuous peak 12A (5 seconds) Support BLHeliSuite programmable Factory firmware: F_H_40_REV16_5.HEX Default protocol: DSHOT600 |
| Onboard Frsky NON-EU receiver Version |
SPI BUS receiver
Frsky D8/D16 switchable
Compatible Non EU transmitter both D8 and D16 mode
Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
|
| Onboard Flysky receiver Version |
SPI BUS receiver
Protocol: AFHDS and AFHDS-2A Switchable
Channels: 8ch(AFHDS) or 14ch(AFHDS-2A)
No ground interference ( Transmitter and receiver 1 m from the ground): 300m
Failsafe support
|
|
External DSM2/ X receiver version |
Serial bus receiver |
| Without Receiver Version |
- No receiver, need add by yourself. support external serial-bus receiver like xm , TBS CRSF, S-FHSS etc |
| EX1102 9000KV Motor |
Mode: EX1102 KV9000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ13.5mm*16mm
Weight(g):2.8g
No.of Cells(Lipo):1S-3S
|
| Propeller | 40mm 4-blade Propeller ( 4 CW 4 CCW) Color: Send Randomly |
| 5.8G 40CH 25-200mW VTX |
Output power: 25~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Antenna: RG178 antenna
Frequency: 5.8GHz 5bands 40 channels
With Raceband
Weight: 3g
Smartaudio ready , change VTX bands, powers, channels via OSD
|
|
Runcam Splite3 Lite Camera |
Brand Name: Runcam Model: Split3-Lite Field of View(FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3) Powered directly with battery will generate surges and burn the camera.) |
| Lipo Battery |
Capacity:300mAh
Voltage:11.4v
Continuous Discharge Rate: 30C
Instantaneous discharge rate: 60C
Size: 65mmx18mmx11mm
Weight: 23g
Connector: XT30
|
Features:
New Crazybee F4 PRO V3.0 FC AIO 12A 2-3S ESC
2S for indoor Cine whoop mode
3S for outdoor Freestyle whoop mode
The lightest 1102 brushless motor only 2.7g with double ball bearings
Powerful and smoothly
Betaflight OSD support ,easy to get RSSI, Voltage ,current from your goggles(DSMX version no RSSI output)
Runcam Split3-lite 1080p 60fps DVR ready
Camera Angle adjustable
VTX power switchable 25mw~200mw
Smartaudio ready , change VTX bands, powers, channels via OSD
Full telemetry function ready (Frsky Non-EU and Flysky version support)
Special Breath light ready
