Flywoo Firefly 1.6 Inch Baby Quad HD V1.3 FPV Racing Drone PNP BNF with : GOKU GN405 Nano 13A Stack Avatar HD Nano Camera

€375,19 EUR
 per
Tax included.
Spend €100,00 to FREE SHIPPING

Short content about your product.

Short content about your product.

Icons are optional

USE RICH TEXT EDITOR
And big icons to highlight the product sale point

Receiver

Product description

Introduction:

In an effort to push the boundaries of carrying the camera on the smallest platform,

Flywoo designed the smallest quadcopter possible in their history.
Firefly Baby Quad, a nano-sized fpv drone designed to carry Insta 360go, SMO 4K camera for some action flying.
Weighing in at just 62g, the Firefly Baby Quad is small , flexible, stable, but is full of power and offers unmatched control . Pilots can quietly enjoy the fun of shooting a video without jelly.

The Baby Quad is equipped with GOKU GN405 Nano FC. This is  a Flywoo another smallest but most spowerful GOKU GN405 Nano flight controller packed with features including a barometer, 16MB blackbox, 6 complete hardware serial ports, I2C functionality and WS2812 LEDs on

each corner.


Specification:

Brand: Flywoo

Model: Firefly 1.6 Baby Quad HD V1.3

Weight: 62g

Baby Quad Frame (HD Verison)

Wheelbase: 80mm

Thickness of Top plate: 1mm
Thickness of Bottom plate: 1.5mm

Side arm: 2mm

GOKU GN405 Nano 13A Stack

GOKU GN405 Nano 16X16 Flight Controller

MCU: STM32F405 BGA
IMU: BMI270 (SPI)  MPU6000
Barometer: BMP280
input voltage : 2-6S
Onboard LED:WS2812*4
6 hardware UARTS (UART1,2,3,4,5,6)
Supports serial receivers (SBUS, iBus, Spektrum, TBS CRSF Nano) only.
PPM and PWM receivers are not supported.
Onbord 16Mbytes for Blackbox logging
5V Power Out: 2.0A max
3.3V Power Out: 0.5A max
Dimensions: 22x22mm
Mounting Holes: Standard 16/16mm square to center of holes
Weight: 2.3g
Firrmware: FLYWOOF405NANO


BS13A BLheli_S 2-4S 4in1 ESC

Mounting Hole: 16x16mm (M3)
input voltage: 2-4S
-Support Oneshot, Multishot,  DShot150/300/600

Weight: 2.5g

Nin V2 1203Pro 5500KV Brushless Motor

Configuration: 9N12P
Stator Diamter: 12mm
Stator Length: 3mm
Shaft Diameter: 1.5mm
Motor Dimension(Dia.xLen) : 16.2x9.9mm
Weight: 4.7g

Input Voltage: 3-4S
Max Continuous Power 3S : 92W

Gemfan 1636 40mm 4-blade Propeller
Center thickness: 5.2mm
Material: Polycarbonate
Number of Blades: 4
Length: 1.6 inch
Hub ID: 1.5mm
Style: T-Mount
Pitch: 3.6 inch
Weight: 0.61g
 Avatar HD Nano Camera VTX Kit

To keep minimizing weight and optimal performance,

we modified Avatar Nano HD Nano kit to save 10g weight.

Flywoo is exploring more possibilities in the ultralight field .

This kit also can support with DJI goggles.

With DJI goggles, Users can choose 25mW/200mW/500mW/700mW from DJI goggle settings.


Recommend Battery ( NOT Included):

4S 450mAh / 4S 300mAh Lipo Battery

Flight time:
About 4:00min flight with Explorer 450mAh 4S battery
About:3:00 min flight with Explorer 300mAh 4S battery

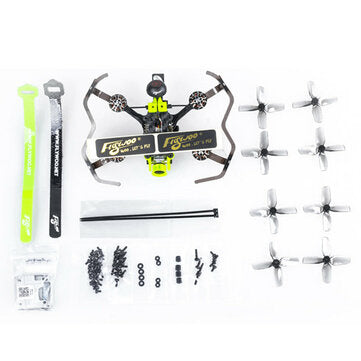

Package Included:

1 x Prebuilt and tested Firefly Baby Quad
2 x Gemfan 1636 40mm 4-v2 Props
2 x FLywoo Battery Strap
1x Firefly spare hardware set
