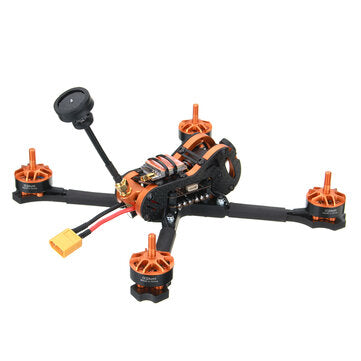

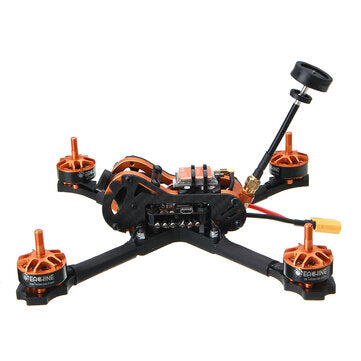

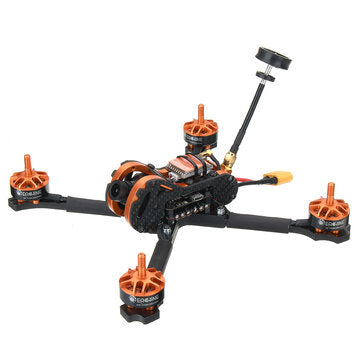

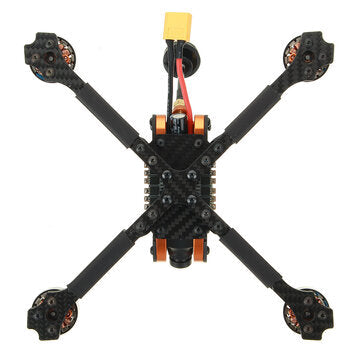

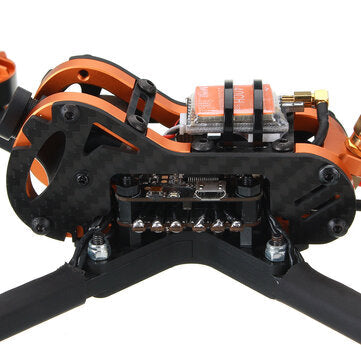

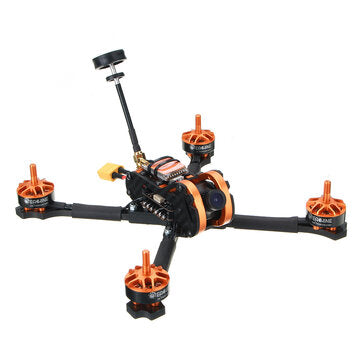

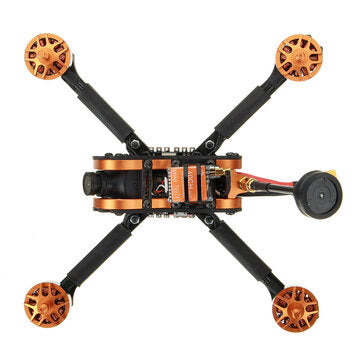

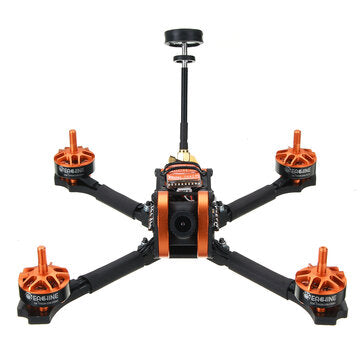

Eachine Tyro99 210mm DIY Version FPV Racing RC Drone F4 OSD 30A BLHeli_S 48CH 200mW VTX 700TVL Camera

Name: Eachine Tyro99 210mm DIY Version FPV Racing RC Drone F4 OSD 30A BLHeli_S 48CH 200mW VTX 700TVL Camera
Brand: Banggood Dropship
SKU: 1338893
Price: 154.01 EUR
Availability: OutOfStock

€158,47 EUR

€154,01 EUR

Tax included.

Spend €100,00 to FREE SHIPPING

Short content about your product.

Icons are optional

USE RICH TEXT EDITOR
And big icons to highlight the product sale point

Product variants

Link text

Product description

Note: Because the MPU6000 is out of production, the flight controller and related Drone be replaced by mpu6500 or BMI270.

Notice:

Has change 40CH 25-600mW VTX into 48CH 200mW VTX. ( WILL SEND RANDOMLY, JULY 7TH)

Old VTX

New VTX

5.8G 40CH 0/25/200/600mw switchable VTX

Output power & transmission distance: ≥0.5km@25mW, ≥1km@200mW, ≥2km@600mW

Transmitting power: 0mW/25mW/200mW/600mW

Full video format: NTSC /PAL

Input voltage & power dissipation: 7V~24V, 12V/260mA@600mW

Size: 20*30*9mm

Weight: ≤7g(except antenna)

With output power self-check function.

Nixie tube SCAN: frequency point (1-8), frequency band (A-E), power (1-3, 0=0mw, 1=25mw, 2=200mw, 3=600mw)

5.8G 48CH 200mW VTX

( LINK)

Note:
1. This is the DIY version that comes unassembled.
2. Make sure the antenna is installed at the output end before powering up to avoid damaging internal components;
3. Note that the input voltage is within the specified range and is correct and correct to avoid damaging internal components;
4. If the antenna is replaced, select a standing wave and a gain antenna for a longer transmission distance;
5. Pay attention to classic protection during transportation and installation.

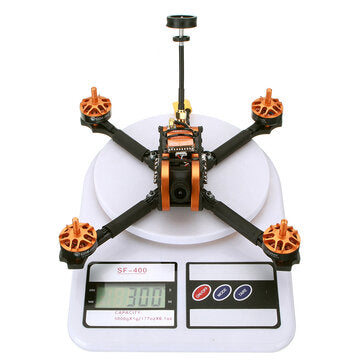

6. Take-off weight is about 450g.

Item	Specification
210mm Frame Kit	Wheel base: 210mm Frame arm thickness: 5mm Bottom plate thickness: 2mm Side plate thickness: 2mm Frame kit material: 3K carbon fiber & 6065 aluminium
2206 2150KV Brushless Motor	Motor KV: 2150RPM/V Idle current (Io/10V): 1.26A Lipo cell: 3-5S Weight: 31g Max continuous current: 31A Max continuous power: 496W Max thrust: 1050g (4S/5") Configu-ration: 12N/14P Motor resistance (RM): 0.0572 Ω Stator diameter: 22mm Stator thickness: 6mm Motor diameter: 27.7mm Motor body length: 19.2mm Overall shaft length: 34.2mm Prop adapter shaft: M5 Bolt holes spacing: 16mm Bolt thread: M3 Propeller: 5-6 inch
4 IN 1 30A BLHeli_S ESC	Continuous current: 30A Burst Current: 40A(10S) Input voltage: 2-5S BEC: 5V 2A BEC Main control chip: 48Mhz EFM8BB2 Firmware: BLHeli_S supports Dshot600 MOS: 5*6
New F4 Flight Controller ( More Details, Click Here)	Main control chip: STM32F405 Sensor: ICM20602 Power supply: 5V Integrated OSD Onboard LC filter PID cycle rate & gyroscope refresh rate up to 32Khz Supports BetaFlight / inav racing firmware
700TVL CMOS Camera	Case size: 25mm25mm Weight: 9.5g Total pixels: PAL: 1020H×596V (0.61MP); NTSC: 1020H×508V (0.52MP) Effective pixels: PAL: 976H×582V (0.57MP); NTSC: 976H×494V (0.48MP) Signal system: NTSC* Resolution ratio(horizontal center): 700TVL Video output: 1.0Vp-p/75Ω Automatic gain control: 0.25/0.50/0.75/1.00, up to 55dB White balance: on/off optional Exposure mode: electron exposure Electronic shutter: 1/50(1/60) - 1/100000 S Gamma correction: 0.45/1.0 Synchronization method: inter-sync Camera lens: standard 2.8mm Lens operating voltage: DC12V (wide voltage, measured can work normally at 7.5-13V) Working current: 70mA (low power consumption) Working temperature: -20℃~-60℃ Humidity: 0%~98%
Racerstar 5040 2 Blade Propeller	Material: PC Mounting hole: 5mm Quantity: 2 CW & 2 CCW Color: blue, red, yellow, purple, white (Delivery color randomly
Battery	Not included Recommend 3-5S

Eachine Tyro99 English Manual

Package included:

1 x 210mm frame kit
2 x 2206 2150KV brushless motor CW
2 x 2206 2150KV brushless motor CCW
1 x 4 IN 1 30A BLHeli_S ESC
1 x New F4 flight controller
1 x 700TVL CMOS camera

1 x New VTX
2 x Battery strap
2 x Racerstar 5038 2 blade propeller CW
2 x Racerstar 5038 2 blade propeller CCW
