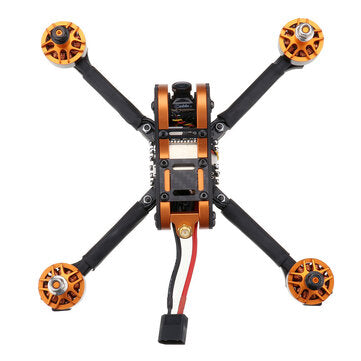

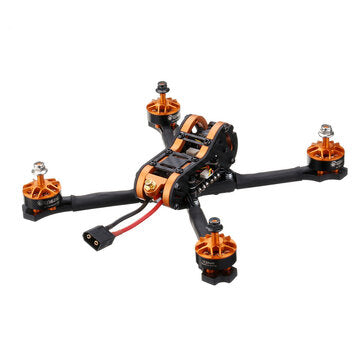

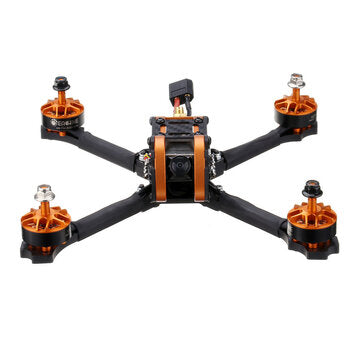

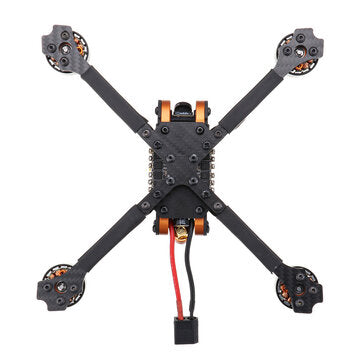

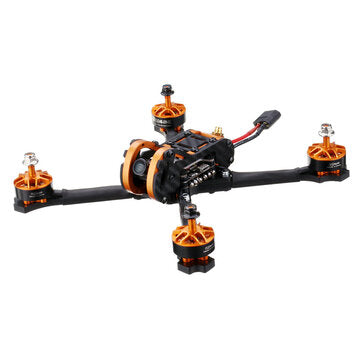

Eachine Tyro109 210mm DIY 5 Inch FPV Racing Drone PNP w/ F4 30A 600mW VTX Caddx Turbo Eos2 1200TVL Camera
Short content about your product.
Short content about your product.
Icons are optional
USE RICH TEXT EDITOR
And big icons to highlight the product sale point
Note: Because the MPU6000 is out of production, the flight controller and related Drone be replaced by mpu6500 or BMI270.
Notice:
1. Because the Caddx Turbo Eos2 Camera has been stopped produced, at present, this drone will replace it into Runcam Nano 2
NTSC 4:3 FPV Camera. ( 14x14x16mm)
2. At present, CN warehouse old and new are Mix, will send radomly.
April 14th, 2021, BeiJing Time
Notice:
CN warehouse will send new version XF5804PRO 25/100/200/600mW VTX,Overseas warehouse are old version with Xf5804 5.8G 40CH 0mW/25mw/200mw/600mw switchable VTX.
| Old VTX | New VTX |
|
Output power & transmission distance: ≥0.5km@25mW, ≥1km@200mW, ≥2km@600mW
Transmitting power: 0mW/25mW/200mW/600mW
Full video format: NTSC /PAL
Input voltage & power dissipation: 7V~24V, 12V/260mA@600mW
Size: 20*30*9mm
Weight: ≤7g(except antenna)
With output power self-check function.
Nixie tube SCAN: frequency point (1-8), frequency band (A-E), power (1-3, 0=0mw, 1=25mw, 2=200mw, 3=600mw)
Frequency control method:
Button frequency control (1-8): press the button for 2 seconds
to enter the frequency setting, and press the button to change
the frequency CH1-8.Change the frequency band (A-E), set the
frequency, press the button for 2 seconds, then press the button
to change the frequency group FR (A-E)
|
Model: XF5804PRO Input voltage: 7-26V Onboard BEC output: 5V Number of launch channels: 40 Transmit power: 25/100/200/600mW Video format: PAL/NTSC Operating temperature: Control Protocol: TBS SmarAudio Antenna Connector: MMCX Wiring method: SH1.0-6P/pad Mounting hole: 30.5*30.5mm Size: 36*36mm |
Notice: It is DIY Version that comes unassembled.
The propeller color is Green & Yellow & Red and Transparent White.
Upgrade Diffirence from Tyro99
Specification: ( Manual )
Brand Name: Eachine
Model: Tyro109
Version: PNP ( Without Receiver)

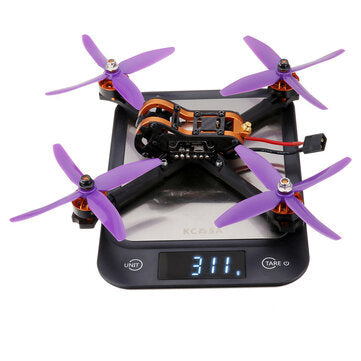

Naked Weight: 311g
Take OFF Weight: 400g approxi.
| Item | Specification |
| 210mm Frame Kit |
Wheel base: 210mm
Frame arm thickness: 5mm
Bottom plate thickness: 2mm
Side plate thickness: 2mm
Frame kit material: 3K carbon fiber & 6065 aluminium
|
| 2206 2400KV Brushless Motor |
KV: 2400KV
Idle current (Io/10V): 1.35A
Lipo cell: 3-5S
Weight: 31g
Max continuous current: 35A
Max continuous power: 560W
Max thrust: 1180g (4S/5")
Configu-ration: 12N/14P
Motor resistance (RM): 0.0536 Ω
Stator diameter: 22mm
Stator thickness: 6mm
Motor diameter: 27.7mm
Motor body length: 19.2mm
Overall shaft length: 34.2mm
Prop adapter shaft: M5
Bolt holes spacing: 16mm
Bolt thread: M3
Propeller: 5-6 inch
|
| 4 IN 1 30A BLHeli_S ESC |
Continuous current: 30A
Burst Current: 40A(10S)
Input voltage: 2-5S
BEC: 5V 2A BEC
Main control chip: 48Mhz EFM8BB2
Firmware: BLHeli_S supports Dshot600
MOS: 5*6
|
| New F4 Flight Controller ( More Details, Click here) |
Main control chip: STM32F405
Sensor: ICM20602
Power supply: 5V
Integrated OSD
Onboard LC filter
PID cycle rate & gyroscope refresh rate up to 32Khz
Supports BetaFlight / inav racing firmware
|
| Caddx Turbo Eos2 1200TVL Camera |
FOV: 160°
WDR: Global WDR
DNR: 2 DNR
Lens: 2.1mm
TV System: NSTC / PAL Optional
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
Latency: min 3ms
Resolution: 1200TVL
Min. Illumination
Wide Power Input
Work Temperature
Image Sensor: 1/3 inch COMS
Aspect Ration: 4:3
S/N Ratio
Video Output
Auto Gain Control
BLC
Dimensions
|
| Xf5804 5.8G 40CH 0mW/25mw/200mw/600mw switchable VTX |
Output power & transmission distance: ≥0.5km@25mW, ≥1km@200mW, ≥2km@600mW
Transmitting power: 0mW/25mW/200mW/600mW
Full video format: NTSC /PAL
Input voltage & power dissipation: 7V~24V, 12V/260mA@600mW
Size: 20*30*9mm
Weight: ≤7g(except antenna)
With output power self-check function.
Nixie tube SCAN: frequency point (1-8), frequency band (A-E), power (1-3, 0=0mw, 1=25mw, 2=200mw, 3=600mw)
Frequency control method:
Button frequency control (1-8): press the button for 2 seconds
to enter the frequency setting, and press the button to change
the frequency CH1-8.Change the frequency band (A-E), set the
frequency, press the button for 2 seconds, then press the button
to change the frequency group FR (A-E)
|
| Pagoda Antenna |
Gain: 5dBi
Max. Power: 50w
Connector: RP-SMA
Color: Black
Weight: 8.6g
Length: 78±3mm
Max. Dia.: 22.4±1mm
Min. Dia.: 11.8±1mm
Frequency: 5.8G
Impedance: 50Ω
VSWR: <1.5:1
Polarization: Circular Polarized
Radiation: Omni
|

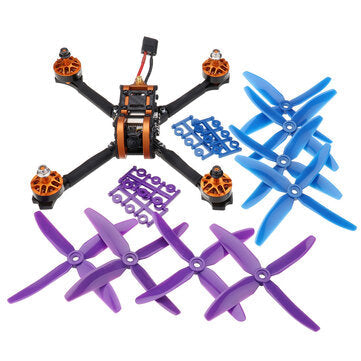

| 5040 5 Inch 4-Blade Propeller |
Material: PC
Mounting hole: 5mm
Center thickness: 8mm
Quantity: 2 CW 2 CCW ( Same Color)
Color: Green & Yellow & Red and Transparent White ( Delivery color randomly)
|
| Battery |
Not included Recommend 3-5S |
Package Included:
1x Antenna
