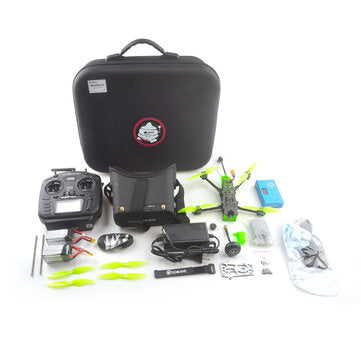

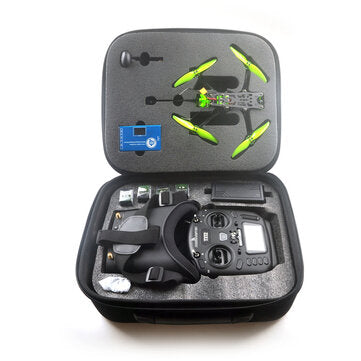

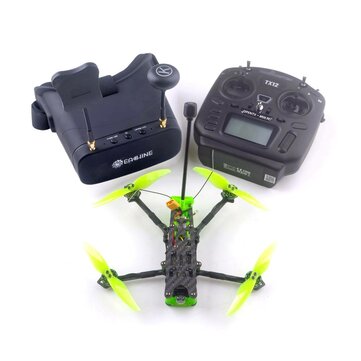

Eachine Novice-IV 4 Inch 3-4S Sub 250g LR Micro Long Range FPV Racing Drone RTF & Fly more w/ EV800DM Goggles Radiomaster TX12 Transmitter

Name: Eachine Novice-IV 4 Inch 3-4S Sub 250g LR Micro Long Range FPV Racing Drone RTF & Fly more w/ EV800DM Goggles Radiomaster TX12 Transmitter
Brand: Banggood Dropship
SKU: POA8043246
Price: 572.46 EUR
Availability: InStock

€572,46 EUR

Tax included.

In stock!

Spend €100,00 to FREE SHIPPING

Short content about your product.

Icons are optional

USE RICH TEXT EDITOR
And big icons to highlight the product sale point

Version

RTF 2x Battery Version

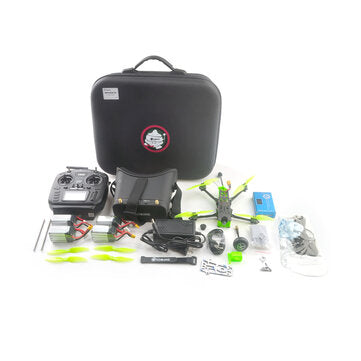

Fly more 4x Battery Version

Product variants

Link text

Product description

User Manual, Download

Spare Part , Click Here

Notice:

NOVICE-IV comes already bound to your radio and on the right video channel matched with your goggle.

GPS Rescue was activated , make sure the GPS search for more than 6 satellites to lock the home position and then you can arm it .

We strongly recommend that you fly in an open place, away from crowds and buildings.

Will comes in New version Novice-IV comes with New Track Finder, GPS Module and OVX306 openvtx , the vtx table is different with earlier version.

May. 7th, 2022 BeiJing Time

	New Version	Old Version
GPS Module	Model: BEITIAN BN-180 GPS Dimension: 18186mm Weight: 4.9g Connector: 1.00mm spacing between the 4pins patch seat Electrical Characteristics Chipset: M8030-KT Receiving Format: GPS,GLONASS,Galileo,BeiDou,QZSS and SBAS Frequency : GPS L1,GLONASS L1,BeiDou B1,SBAS L1,Galileo Channels : 72 Searching Channel Tracking : -167dBm Reacquisition : -160dBm Cold start : -148dBm Hot start : -156dBm Position Horizontal : 2.0 m CEP 2D RMS SBAS Enable (Typical Open Sky) Speed : 0.1m/sec 95% (SA off) Timing : 1us synchronized to GPS time Cold Start : 26s Warm start : 25s Hot start : 1s Support Rate : 4800bps to 921600bps,Default 9600bps Data Level : TTL or RS-232,Default TTL level Data Protocol : NMEA-0183 or UBX, Default NMEA-0183 Single GNSS : 1Hz-18Hz Concurrent GNSS : 1Hz-10Hz,Default 1Hz	Model: Eachine Mini M8N GPS Features: GPS SBAS or GPS GLONASS SBAS Position Accuracy: 2.0 m CEP Sensitivity2 Tracking & Nav: –167 dBm Cold starts: –148 dBm Hot starts: –156 dBm Update rate: 5HZ Default, up to 10HZ Baudrate: 57600 Optimize for Pixhawk and Pixracer running Ardupilot firmware Size: 20mm20m6mm Weight: 6g Cold start waiting time: 3~5minutes Warm start waiting time: 0.5~1.5minutes
VTX	Model: Eachine OVX306 Frequency: 5.8G 48CH Transmitting Power: 0/RCE/25mw/100mw/400mw Power supply: DC 5V Current (5v): <650ma (400mw) Weight: 1.5gram without antenna Center distance of mounting holes: 25.5mmx25.5mm	Model: Whoop_vtx_HP Output power: 25~400mw switchable Frequency: 40CH Input voltage: 5V Current consumption: 100mA~400mA(type) Antenna Connector: U.FL Frequency: 5.8GHz 5bands 40 channels With Raceband Smartaudio ready Weight:3g
Track Finder	Built-in Battery Continuous working time: around 30minutes Working mode: Normal Buzzer model or Auto-alarm while Lost main battery. High-brightness LED indication 100 dBi buzzer Input voltage: DC 5V Size: 18x17x15mm Weight: 4.3g	DT-B90 90dBi Finder Buzzer Built-in Battery Continuous working time: around 30minutes Working mode: Normal Buzzer model or Auto-alarm while Lost main battery. High-brightness LED indication 90 dBi buzzer Input voltage: DC 4.5-9.0V Size: 25x16x15mm Weight: 5.83g

Specifications:
Brand Name: Eachine

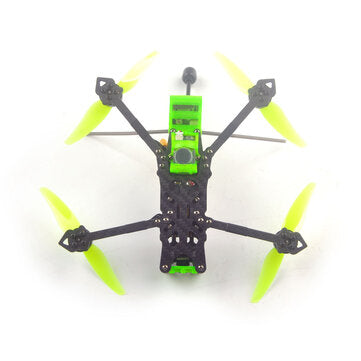

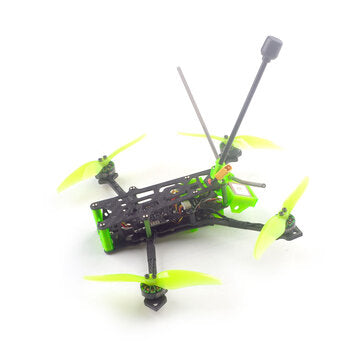

Item Name: Novice-IV 3-4S 4inch LR drone BNF and RTF
Wheelbase: 170mm
Size: 180mm*130mm*40mm(without propellers,batteries,antenna)

Weight: 125g (without battery)

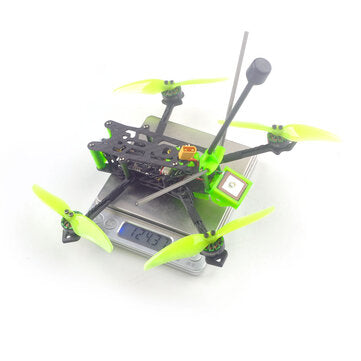

Take off weight: 215g

Package Weight: 2.6kg

Package Size: 37x33x15cm

Features:
The lightest 4inch LR FPV drone

New AIO Flight controller with 25A ESC

Efficiency 1404 KV2750 brushless motor

Long flight time around 20minutes with stock battery Sub 250gram

Around 31minutes flight time with 4s 18650 3000mah

Very stable and easy to control

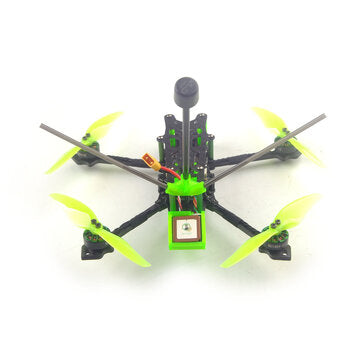

With Beitian GPS Rescue system

With Buzzer and LED drone tracker finder

Distance Range more than 1KM in an Open area without interference

Spare parts specifications:

Motor	Mode: NC1404 KV options: KV2750 Configu-ration:9N12P Stator Diamter:14mm Stator Length:4mm Shaft Diameter: Φ1.5mm Motor Dimension(Dia.Len):Φ15mm15mm Weight(g):9g
Propeller	Material: PC Weight:1.61g Pitch:2.4in Prop Dia:102.33mm Center Thickness:5.5mm Center Hole Dia:1.5mm 3 holes Adaptive Motor:1408-1506 Recommended Motor:1505-3600kv Colors: Clear Gray
Flight Controller	MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH) Sensor: SPI Sensor MPU6000 for gyro and accelerometer Barometer: BMP280 UART1/2/6 available Board size: 33MM * 30MM * 4.5MM Mount holes: 20MM*20MM Power supply:3-4S battery input (DC 8V-26V) Built-in 25A(each) Blheli_S 4in1 ESC Built-in Betaflight OSD(SPI Control) Built-in OSD Max Current 100A Built-in 5V 1.5A BEC Built-in 9V 1.5A BEC Built-in 8Mbyte Blackbox Firmware target: BetaflightF4
Onboard 4in1 ESC	EFM8BB21 Power supply: 3-4S LiPo/LiPo HV (7v/17v) Current: 25A continuous peak 30A (5 seconds) Support BLHeliSuite programmable Factory firmware: F_H_40_REV16_7.HEX Default protocol: DSHOT600

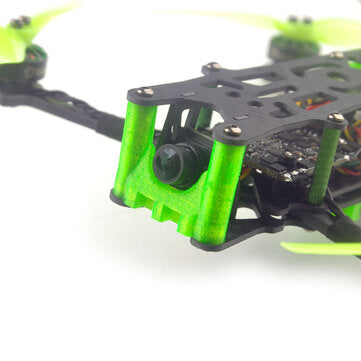

Caddx Baby Ratel2	Image Sensor: 1/1.8" Inch starlight HDR sensor Horizontal Resolution: 1200TVL TV System: NTSC & PAL (changeable) IMAGE: 16:9 & 4:3 (changeable) WDR: Super WDR (HDR) Min. Illumination: Starlight Lens: 18mm Synchronization: Internal Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio : >60dB (AGC OFF) Video Output: CVBS FOV: 165 degree Dimensions: 14mm14mm19mm Weight: 4.6g (N.W.)
Lipo Battery	Capacity:1100mAh Voltage:15.2v Continuous Discharge Rate: 50C Size: 60mmx35mmx25mm Weight: 90g Connector: XT30
EV800DM Goggles	Built-in with super HD DVR up to 720576px resolution Diversity RaceBand 40ch Auto-Searching Two system (Display/recor d duo core separated chipsets ) ensure no delay in displaying and no frame lost in recor ding(please use C10 super speed card to ensure the full frame recor ding) Work friendly with player-OSD, no block on the important flying OSD information; Focal length adjustable design;Room for eyeglasses HD high brightness 3 inch LCD specially tuned for FPV racing; Diversity function, Built-in super sensitive 5.8GHz 40ch receiver module, with RaceRand; Advanced auto-searching function and the working frequency show on screen; Built-in 3.8V 2000mAh battery, each full charge offer 2.2 hours working time; Wide range re-charge voltage 5-180V; Accept 2S or 3S batteries as back-up power source, to prolong the working time; Nice ergonomic design and fit different faces; Super-wide visible angle up to 82 degree; 92% transparent lens adopted, no distort, no blur on the edge of screen; Light weight 320g with 2.2 hr 2000mAh battery, RTF for any scale racing game; 3 Inch 900600px HD high brightness LCD
2.4G Receiver	Brand Name: RadioMaster Item Name: R81 Nano Receiver Model: R81 Weight: 2g Size: 17*11 mm Channels: 8CH Frequency range: 2400-2483.5Mhz Power input range: 4.5-6V Signal format: FrSky D8 Compatible Output format: SBUS Support return: support return RSSI Control distance: more than 1km Antenna length: Approximaltly 6cm
Radio Transmitter	Brand Name: RadioMaster Item Name:TX12 Transmitter Size:170159108mm Weight: 363g Frequency: 2.400GHZ-2.480GHZ RF Chip: Single-chip Multi-protocol（CC2500） Supported Protocols: Corona, Hitec, for Futaba S-FHSS,Frsky D16/D8, RadioLink, Graupner HoTT Transmitting Power: 20dbm Antenna Gain: 2db Working Current: 160mA@8.4V Voltage Range:6.6-8.4v DC Range: > 2km @ 20dbm (depending on receiver) Radio Firmware: OpenTX（Transmitter）/ Multi-Module（RF module) Channels: Up to 16 (depending on receiver) Display:12864 Monochrome LCD display Gimbal: High precision potentiometer gimbals External module:JR/FrSKY/Crossfire compatible Upgrade Method: USB/SD card & OpenTX Companion PC software *SD Card not included.
