Product description


Note: The newest version comes with 8 bit Blheli_S 35A ESC. Orders sent from January 8th will be the latest version.

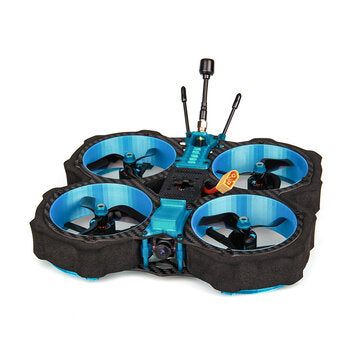

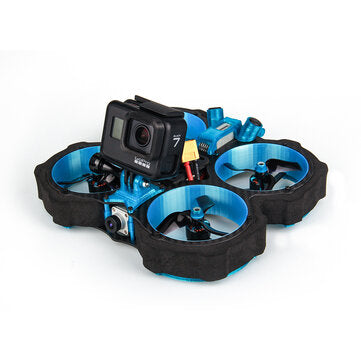

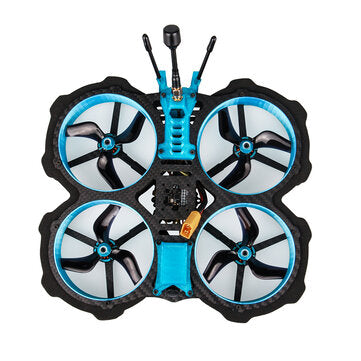

Eachine Cvatar 142mm 6S 3 Inch Cinewhoop Duct FPV Racing Drone PNP/BNF RunCam Nano2 Cam F722 DJI FC 1507 2400KV 35A ESC


Note: Camera Protection Case for Gopro is not Included.

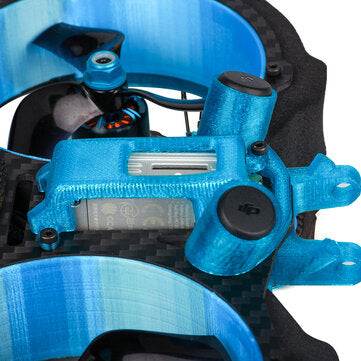

         It comes with parts for installing DJI FPV Air Unit to upgrade to DJI HD Version.


Eachine Cvatar Cinewhoop 142  FPV Racing Drone F722  Flight Controller 35A 4in1 ESC 1507 Motor Runcam with EVA Pipeline.

The Cvatar is the new cinewhoop from Eachine. Cvatar comes from the word Avatar, it combines with Cinewhoop and the science fiction feeling of Avatar.It is very stable and can fly around people and property safely. The possibilities of creation of videos are thus unlimited. The newest F722 FC in the Cvatar is DJI ready too, so you can switch to DJI digital system with ease. Get the Cvatar now and you can experience a different feeling of cinewhoops.


User Manual, Download


Specification:

Brand Name:Eachine

Item name: Cvatar 142 Cinewhoop FPV Racing Drone BNF/PNP

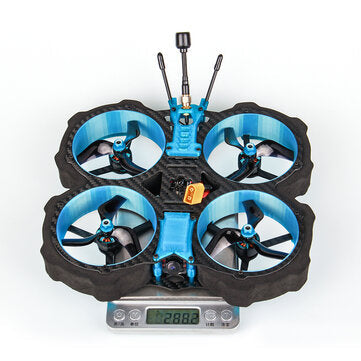

Net Weight:288.2g (Weight with receiver)


Frame

Wheelbase:142mm

Top Plate Thickness: 2mm

Bottom Plate Thickness: 2mm

Top and Bottom Plate Spacing: 25mm

FPV Camera Compatibility: 19/20mm

Type:3 Inch Cinewhoop Frame

Weight:92.4g (Excluding  TPU PLA)

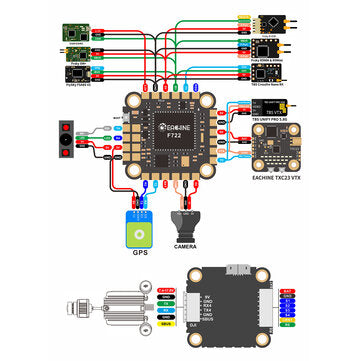

Flight Controller

F722 Mini Flight Controller

MPU:MPU6000

CPU:STM32F722 RET6

Input Voltage:2-6S Lipo

Barometer: BMP280

Flash / Blackbox: 8MB

UARTS: 5 ports

Firmware: EACHINEF722.HEX

FC Compatibility: 20mm (M2) / 30.5mm (M3)/25.5-26.5mm(M2)

Dimensions: 28.5*28.5mm

Mounting: 20mm M3

Weight:3.7g

ESC

35A BL_S 3-6S 4in1 ESC

CPU:STM32F051

Input Voltage:3-6S Lipo

Steady Current:35A

Peak Current:40A(10 Sec)

Dimensions: 32.5*31.5mm

Mounting: 20*20mm M2

Weight:6.5g

VTX

EACHINE TXC23 VTX

Output power:PIT/25/200/600/800mW

Input:DC 6-36V

Antenna:MMCX

VTX Function: IRC Tramp

Weight:5g

Camera

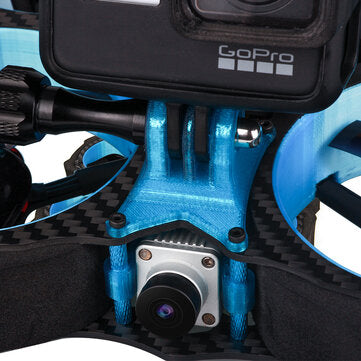

RunCam Nano2 FPV Camera

Image Sensor:1/3 700TVL CMOS

Lente:2.1mm

Input Power:DC 5V

Dimensions:14mm*14mm*16mm

Net weight:3.2g

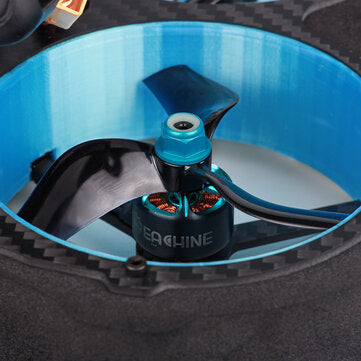

Brushless Motor

1507 2400KV Brushless Motor

Motor:KV2400 (6S)

Input Voltage:3-6S

Recommended Prop(inch):3 Inch

Weight:15.9g

Propeller

Gemfan 75mm 3 Inch 3-Blade Propeller

Quantity: 4 CW & 4 CCW


Recommended battery(Not Included):

6S: 1300-1550mAh

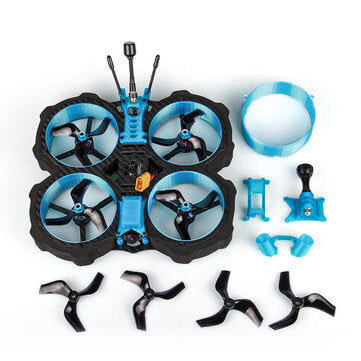

Package Included:

1 x Eachine F722 mini Flight Controller

1 X Eachine 35A Blheli_S 3-6S 4in1 ESC

4 x Eachine 1507 2400KV Brushless Motor

1 x Eachine Cvatar 142 Freestyle Frame Kit

1 x Eachine TXC23 VTX

1 x RunCam Nano2 FPV Camera

6 x Gemfan 75mm propeller

1 x Eachine Hammer Antenna

1 x Receiver (BNF ONLY)
