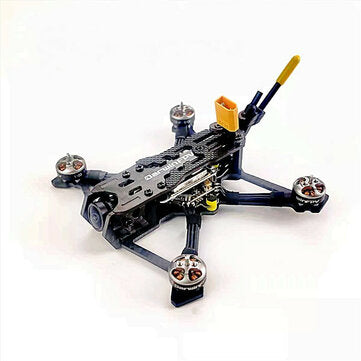

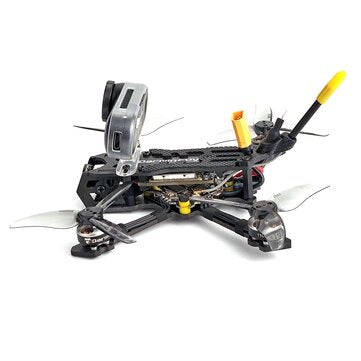

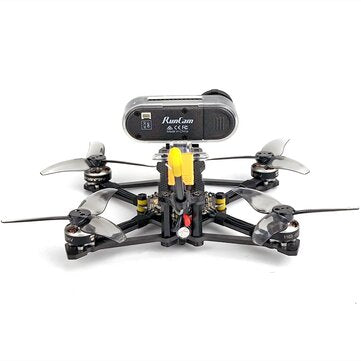

DarwinFPV TinyAPE Freestyle 2.5
Short content about your product.
Short content about your product.
Icons are optional
USE RICH TEXT EDITOR
And big icons to highlight the product sale point
Tiny Ape Freestyle is the first 2.5'' drone from Darwinfpv. In order to meet the needs of more friends and we have made multiple attempts. It comes with the Darwin ELRS2.0 F411 15A Bluejay AIO and the VTX006 which has 25-600mW output power.
Configuration:
Brand: DarwinFPV
Tiny Ape Freestyle |
Tiny Ape Freestyle Thumb Camera |
|
Weight |
50.3g (without batteries and propeller) |
61.3g (drone and camera) |
Propeller |
Gemfan 2512 3-blade propeller |
Gemfan 2512 3-blade propeller |
FC&ESC |
F411 2S 15A FC (Built-in ELRS 2.4G receiver) |
F411 2S 15A FC (Built-in ELRS 2.4G receiver) |
Built-in Receiver Protocol |
SPI ELRS 2.4G |
SPI ELRS 2.4G |
Motor |
1103 8000KV Brushless Motor |
1103 8000KV Brushless Motor |
Camera |
Run Cam Nano4 |
Run Cam Nano4 |
VTX |
25-600mW VTX |
25-600mW VTX |
AIO Firmware |
betaflight_4.3.0_BETAFPVF4SX1280 |
betaflight_4.3.0_BETAFPVF4SX1280 |
ESC Firmware |
Bluejay_S_H_50_48_v0.14 |
Bluejay_S_H_50_48_v0.14 |
Recommended Battery |
2S 380-450mah (Not Included) |
2S 380-450mah (Not Included) |
The AIO FC comes with ELRS_V1.0 pre-flashed. And we strongly advise everyone to stay on this version of the ELRS firmware until the BetaFlight 4.3 is officially released, as you may some bugs.
However, if you own a TX with a firmware ver. 2.x and wish to update the FC firmware, it can be done via BetaFlight V4.3.0 RC1-RC3.
Make sure you choose the right firmware, which is called — BETAFPVF4SX1280. After successfully flashing the flight controller with the latest officially released ELRS firmware, you need to flash the CLI and VTX configuration files. The following are the built-in receiver pairing tutorials and CLI files that need to be flashed after the update:
Darwin AIO 002 FC Pairing Tutorial:
Run Cam Nano 4 Camera
The Run Cam Nano 4 uses a 1/3'' CMOS sensor, 2.1mm lens and 800TVL resolution for truer colors and clearer low-light night vision.

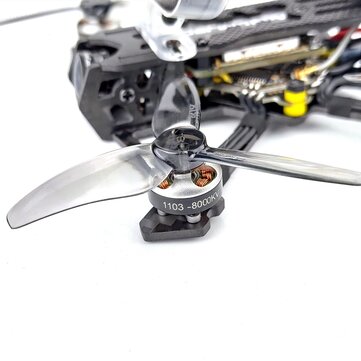

1103 8000KV Brushless motor
1103 8000KV Brushless motor is only 3.7g and it’s power and thrust are surprising, and the flight time can achieve about 5 Minutes. We have notice: the motor only supports 2S batteries, and if it is connected to 3S to push the throttle too much the motor will be permanently damaged .
380mah(3S) |
450mah(2S) |
|
Landing voltage |
9.75V |
6.5V |
VTX Power |
400mW |
400mW |
Flying Time |
5.25min | 5.18min |
VTX
VTX006 has 25-600mW output power and can provide stable images and powerful transmission. You can choose the perfect output
power according to you FPV requirements. ( The default setting of the output power for Tiny Ape is 400mW).
Red light flashes frequency |
Power |
1 |
25mW |
2 |
200mW |
3 |
400mW |
4 |
600mW |
Flight Control(FC)
This is an updated version of Darwin AIO. We integrated the ELRS receiver on the FC to make it easier to apply to mini drones. The ESC
adopts Bluejay firmware, compatible with 1-3S Lipo input, 15A continuous current and 17A peak current. FC provides 2 sets of Uarts
interfaces, and also provides various external device interfaces such as SBUS, Softserial, CTR, BUZZ, RGB, etc., which perfectly solves the
problem of insufficient number of F411 Uarts.
The built-in receiver is an SPI protocol receiver, so you need to select SPI receiver support (SPI RX support) in the betaflight configurator.
Under normal circumstances, the checkbox on the betaflight configurator receiver is empty. If the betaflight configurator used is 10.8.0 and above, the checkbox should select "EXPRESSLRS". As shown below.
Package Included:

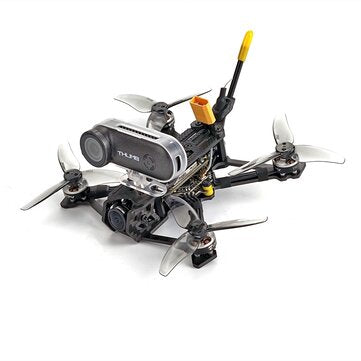

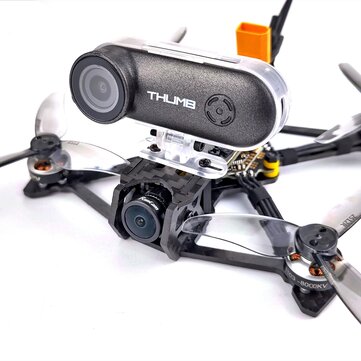

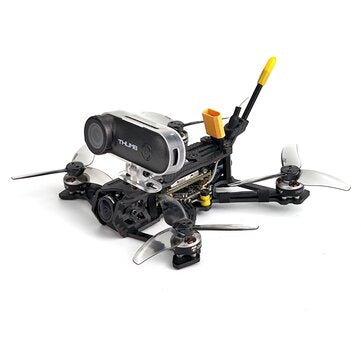

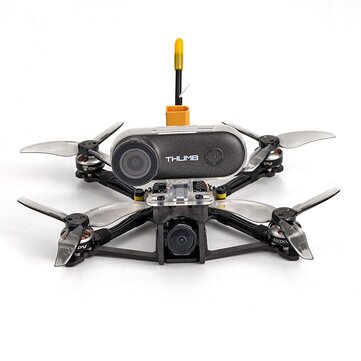

1* DarwinFPV TinyAPE Freestyle/TinyAPE Freestyle Thumb Camera
