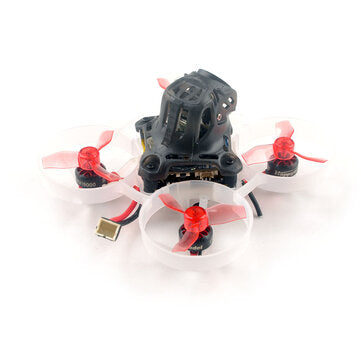

27g Happymodel Mobula6 HD M6 65mm Crazybee F4 Lite 1S Whoop FPV Racing Drone BNF w/ Runcam Split3-lite 1080P HD DVR Camera

Notice: Because the MPU6000 is out of production, the flight controller and related Drone will gradually be replaced by ICM20689 or BMI270.

Notice: The flight controller of DSM2/DSMX version Mobula6 HD has been updated to be CrazybeeX DXS V1.0 after Dec.9th 2020 , it has built-in DSM2/DSMX spi receiver , so it won’t come with an external Nano_sp09 receiver.

Specifications:

Brand Name: Happymodel

Item Name: Mobula6 HD 1S 65mm Brushless whoop HD drone BNF version
Wheelbase: 65mm
Size: 80mm*80mm*40mm

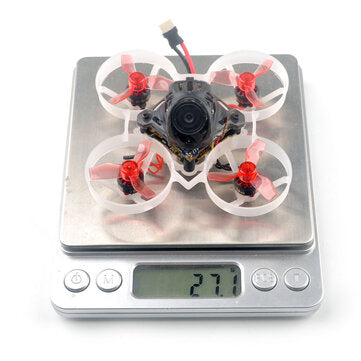

Weight: 27g

Receiver option:

Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)

Internal SPI Flysky version(Compatible with AFHDS and AFHDS-2A Flysky transmitter)

External DSM2/DSMX version(Compatible with Spektrum DSM2/X transmitters)

External TBS CRSF NANO version(Compatible with TBS ransmitters)
 
 Spare parts specifications:
 

Motor	Mode: EX0802 19000KV Configu-ration:9N12P Stator Diamter:8mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm Weight(g):1.7g No.of Cells(Lipo):1S only
Propellers	Gemfan 1219-3 Center Thickness:5mm Prop Disk Diameter:31mm Center Hole Inner diameter:1.0mm Weight:0.28g
Flight controller	(Frsky SPI RX version) CRAZYBEE F4 Lite Frsky version Firmware target: CrazybeeF4FR (Flysky SPI RX version) CRAZYBEE F4 Lite Flysky version Firmware target: CrazybeeF4FS (External DSM2/DSMX RX version) CRAZYBEE F4 Lite Firmware target:CrazybeeF4DX (External TBS CRSF NANO RX version) CRAZYBEE F4 Lite Firmware target:CrazybeeF4DX MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000 or  ICM20689 or BMI270.(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI Frsky/Flysky receiver Built-in 5V 1A BEC Built-in voltage detection
Onboard 4in1 ESC	MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Default protocol: DSHOT600
Onboard Frsky SPI D8 receiver Version	SPI BUS receiver Frsky D8 compatible Compatible Non EU transmitter D8 model Channels: 8ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m
Onboard Flysky SPI receiver Version	SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m Failsafe support
External DSMX version	Resolution: 1024/2048 Operating voltage: 3.3V Working current: 60MA Size: 15mm*10mm*5mm Antenna length: 30mm Protocol: DSM2/DSMX
External TBS CRSF Nano receiver version	Original TBS CRSF Receiver  ,CRSF Protocol , Official TBS transmitter compatible
Onboard 5.8g VTX	Output power: 25mw Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels With Race band  Smartaudio ready
Runcam Split3-Lite	Model: RunCam Split3-Lite Field of View(FOV):Recording FOV 165°(FPV FOV: 165 ° @16:9, 130 ° @4:3) Video Resolution:1080@60fps/1080@50fps/1080@30fps/720@60fps Video File Format: MOV Image Resolution:2 MP TV Mode: NTSC (720*480)/PAL (720*576) Switchable Interface: JST 1.25mm / UART and SH 1.0mm Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II/UHS-III) Hole Distance of Installation: 25.5*25.5mm PCB Size: 29*29mm Lens Module Size: 14*14mm Lens Specs: M9 Power Input: DC 5-20V(Non-direct power supply from battery. Powered directly with battery will generate surges and burn the camera.) Working Current: 450mA @5V
Lipo Battery	Capacity:250mAh Voltage:3.8v Continuous Discharge Rate: 30C Size: 55mmx12mmx7mm Weight: 6.5g Connector: PH2.0

 
 

Features:

AIO 4IN1 Crazybee F4 Lite flight controller built-in 5.8G VTX

Extreme light 1S 65mm Brushless HD whoop only 27g

Come with Runcam Split3-lite 1080P HD DVR

Smooth and agile

Compatible for 1S Lipo/LIHV

Camera Angle adjustable
 
 Package Included:
 1 x

Mobula6 1S 65mm Whoop Drone Frame
 1 x SPI Receiver Option1: Crazybee F4 Lite FC Built-in Frsky SPI D8 RX
       SPI Receiver Option2: Crazybee F4 Lite FC Built-in Flysky SPI RX
      External receiver option1：DSM2/DSMX compatible Satellite Receiver
       External receiver option2：TBS CRSF NANO Receiver
 4 x EX0802 KV19000 Brushless Motor
 1 x Gemfan 1219-3 Propellers(4cw 4ccw)
 1 x Runcam Split3-lite 1080P HD Camera DVR
 1 x 5.8G 25mW 40ch VTX (Flight Controller Built-in)
4 x 1S 250mah 30C LiHV Battery
 1 x 1S Lipo/LIHV USB Charger
 1 x Propeller Disassemble Tool
