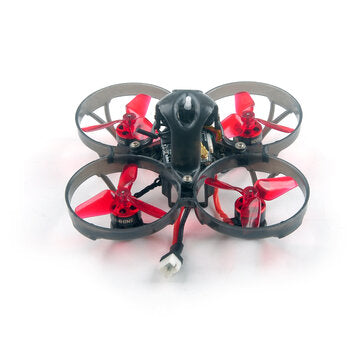

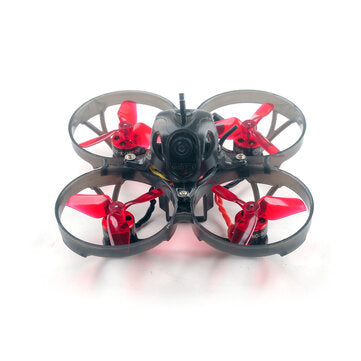

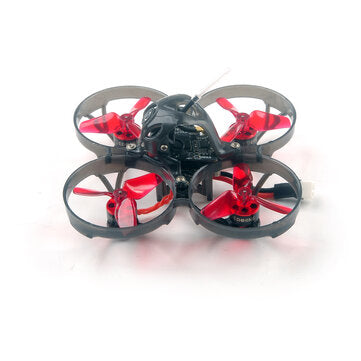

21g Eachine UZ65 65mm 1S Whoop FPV Racing Drone BNF Runcam Nano3 35mm Propeller 5.8G 0mw~400mw 48CH VTX
21g Eachine UZ65 65mm 1S Whoop FPV Racing Drone BNF Runcam Nano3 35mm Propeller 5.8G 0mw~400mw 48CH VTX
Couldn't load pickup availability
Note:
The 5.8G 25~100mW VTX will be change 400mw Openvtx.
21g Eachine UZ65 65mm 1S Whoop FPV Racing Drone BNF Runcam Nano3 35mm Propeller 5.8G 25~100mW VTX
Features:
The smallest 1-2s 3 in 1 flight controller built-in ESC, Receiver,
The world first 65mm whoop with 35mm propellers
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV
Camera Angle adjustable
Specifications:
Brand Name: Eachine
Item Name: UZ65 65mm FPV Racing Drone
Wheelbase: 65mm
Size: 80mm*80mm*40mm
Weight(without battery): 21g

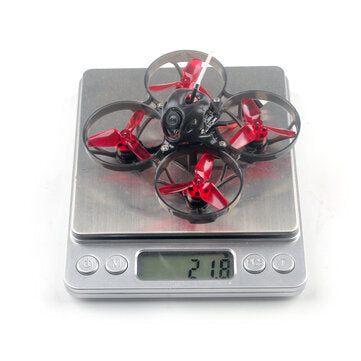

Weight(with battery): 29g
Receiver option:
Internal SPI Frsky version (Compatible with ACCST D8/D16, Recommend D8 mode)
Internal SPI Flysky version(Compatible with AFHDS and AFHDS-2A Flysky transmitter)
External DSM2/DSMX Receiver version(Compatible with Spektrum DX6I/DX7/DX8/DX9)
External TBS Crossfire Nano RX version(Compatible with TBS transmitter)
How to add external receiver on the board? Click Here
Features:
The smallest 1-2s 3 in 1 flight controller built-in ESC, Receiver
The world first 65mm whoop with 35mm propellers
Runcam Nano3 The lightest 1/3 CMOS 800TVL Camera
Smooth and powerful
Compatible for 1S Lipo/LIHV
Camera Angle adjustable
Spare parts specifications:
| Motor | Mode: SE0802 19000KV Configu-ration:9N12P Stator Diamter:8mm Stator Length:2mm Shaft Diameter:Φ1mm Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm Weight(g):1.9g No.of Cells(Lipo):1S only |
| Propellers | HQPROP 35mm-3blades Center Thickness:5mm Prop Diameter:35mm Center Hole Inner diameter:1.0mm |
| Flight controller | Frsky SPI RX version Firmware target: CrazybeeF4FR Flysky SPI RX version Firmware target: CrazybeeF4FS DSM2/DSMX External RX version Firmware target:CrazybeeF4DX TBS Crossfire External RX version Firmware target: CrazybeeF4DX MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Board size: 28.5 * 28.5MM Power supply: 1-2S battery input (DC 2.9V-8.7V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in SPI Frsky/Flysky receiver Built-in 5V 1A BEC Built-in voltage detection |
| Onboard 4in1 ESC | MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_7.HE Default protocol: DSHOT600 |
| Onboard Frsky SPI D8 receiver Version | SPI BUS receiver Frsky D8 compatible Compatible Non EU transmitter D8 model Channels: 8ch Failsafe support No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200m |
|
Onboard Flysky SPI receiver Version |
SPI BUS receiver Protocol: AFHDS and AFHDS-2A Switchable Channels: 8ch(AFHDS) or 14ch(AFHDS-2A) No ground interference ( Transmitter and receiver 1 m from the ground): 100~200m Failsafe support |
| 5.8G VTX | Firmware version: OPENVTX |
| Runcam Nano3 | Model: RunCam Nano 3 Image Sensor: 1/3" CMOS Horizontal Resolution: 800TVL Lens : 2.1mm(M8) FOV 160° Signal System: PAL/NTSC Non Switchable S/N Ratio: >50dB Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux@1.2F D-WDR: Auto Day/Night: Color Power:DC 3-5.5V Current: 110mA@5V 120mA@3.3V Housing Material: ABS Net Weight: 1.2g Dimensions: L14mm*W14mm*H9mm |
Lipo Battery |
Capacity:300mAh |

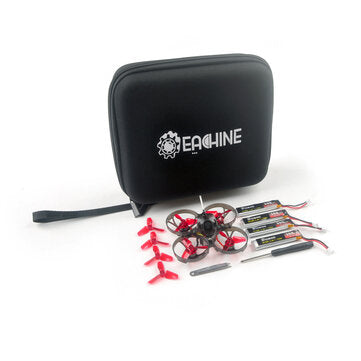

Package includes:
1 x UZ65 65mm 1S 65mm whoop Drone Frame
1 x SPI Receiver Option1: Superbee F4 FC built-in Frsky SPI D8 RX
SPI Receiver Option2: Superbee F4 FC built-in Flysky SPI RX
External Receiver Option3: Superbee F4 FC built-in DSM2/DSMX RX
External Receiver Option4: Superbee F4 FC built-in TBS crossfire RX
4 x SE0802 KV19000 brushless motor
1 x HQPROP 35mm-3 blades Propellers(4cw 4ccw)
1 x Runcam Nano3 1/3 CMOS 800TVL camera
1 x 5.8G 400mw 48ch vtx
4 x 1S 300mah 30C LiHV Battery
1 x 1S Lipo/LIHV USB Charger
1 x Propeller disassemble tool
1 x Eachine Handbag
